Instrument Cluster / Carrier: Service and Repair

Instrument Visor Removal/Installation

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*

NOTE:

- Take care not to scratch the dashboard or the related parts.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

1. Adjust the steering column to the full tilt down position.

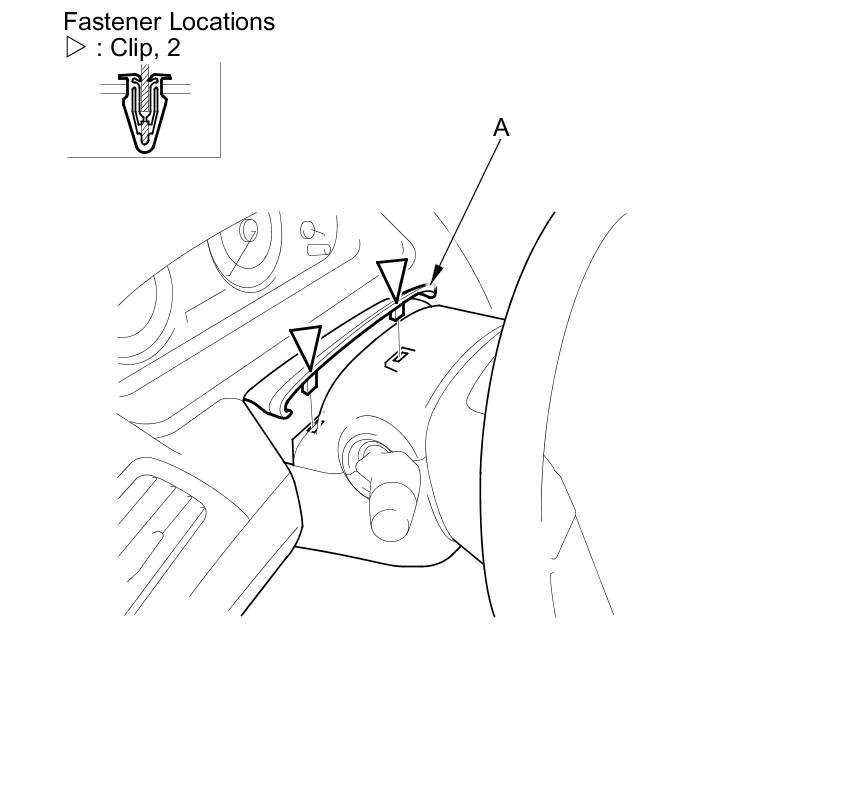

2. Pull out the column blind cover (A) to detach the clips.






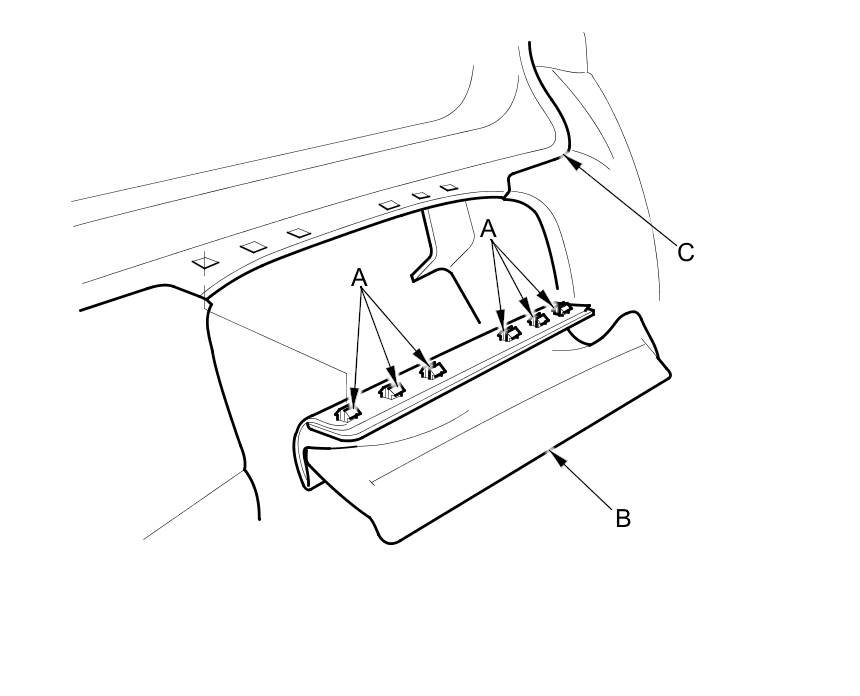

3. If necessary, release the hooks (A), then remove the column blind cover (B) from the instrument visor (C).






4. Gently pull out the instrument visor (A) to detach the clips (B, C) and release the hooks (D, E), then remove it.





5. Install the visor in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
