Center Mounted Brake Lamp: Service and Repair

High Mount Brake Light Replacement

1. Remove the tailgate spoiler trim Service and Repair.

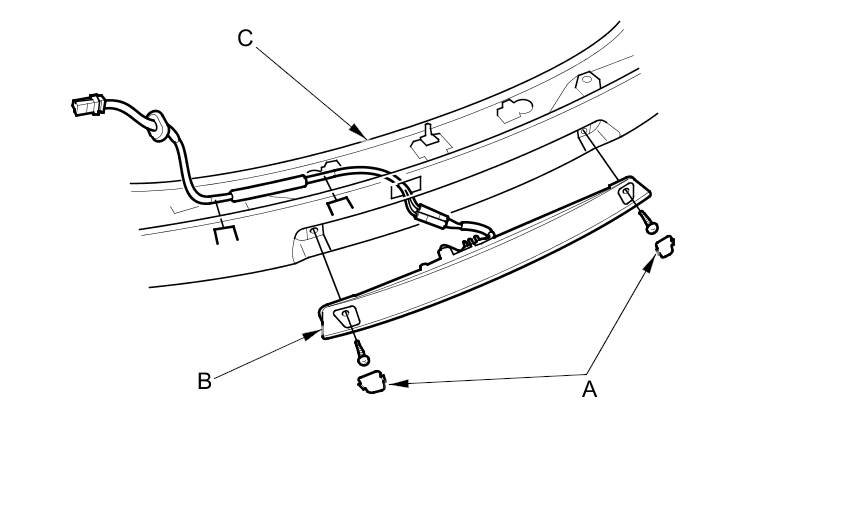

2. Remove the covers (A), and the two screws, then remove the high mount brake light (B) from the tailgate spoiler trim (C).

NOTE: Inside of the both ends of lens on high mount brake light is cleanable. If dirt or dust sticks to insides of lens, remove covers and clean off it.









3. Install the high mount brake light in the reverse order of removal.
