Tail Lamp: Service and Repair

Taillight Replacement

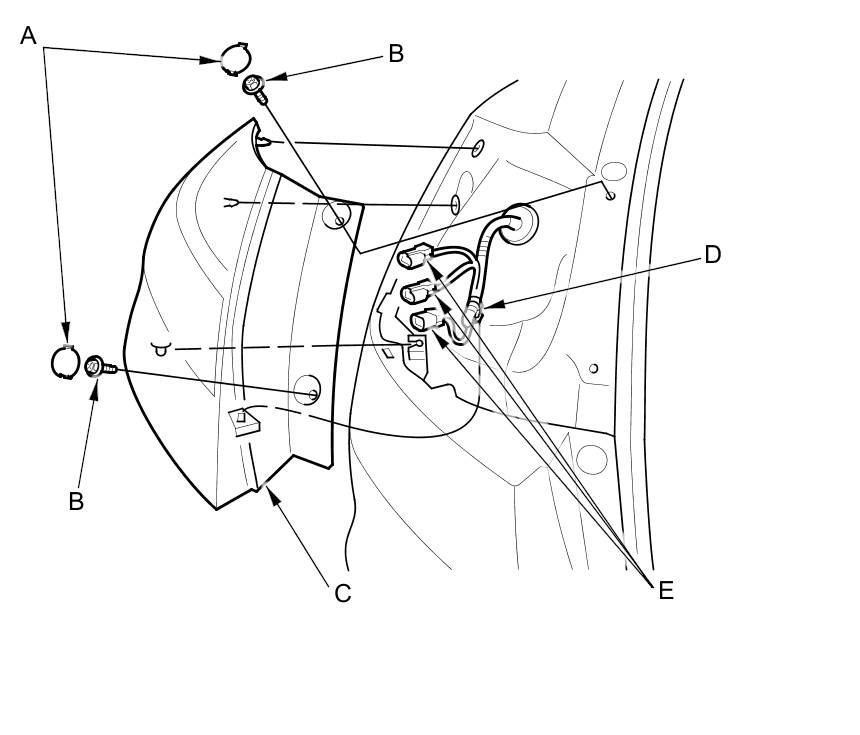

1. Open the tailgate, and remove the covers (A).









2. Remove the two bolts (B) from the taillight unit.

3. Carefully pull out the taillight (C).

4. Remove the harness clip (D) from the taillight housing, and disconnect the connectors (E) from the bulb sockets.

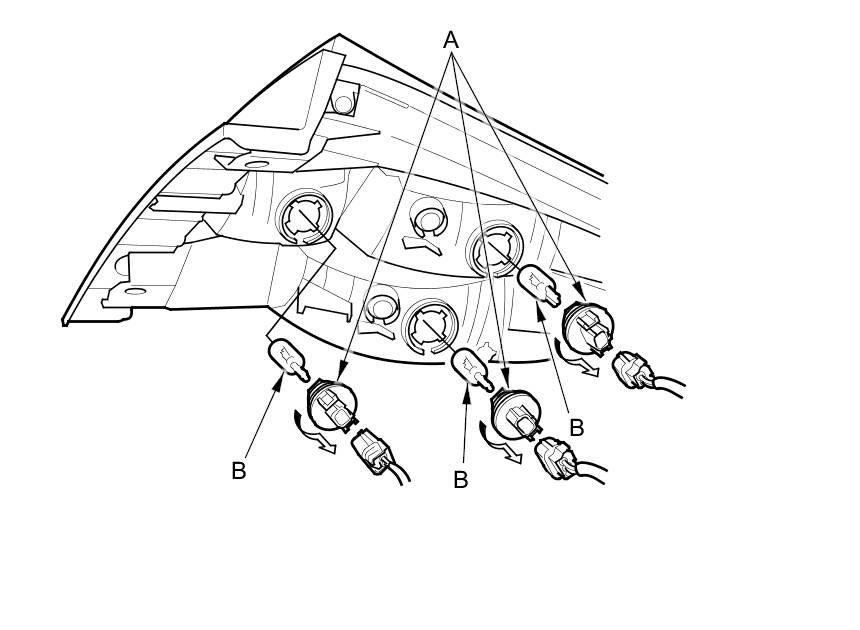

5. Turn the bulb sockets (A) 45 ° counterclockwise to remove the bulbs (B).





6. Install the light in the reverse order of removal.
