Audio Wire Harness




Connector and Harness Locations

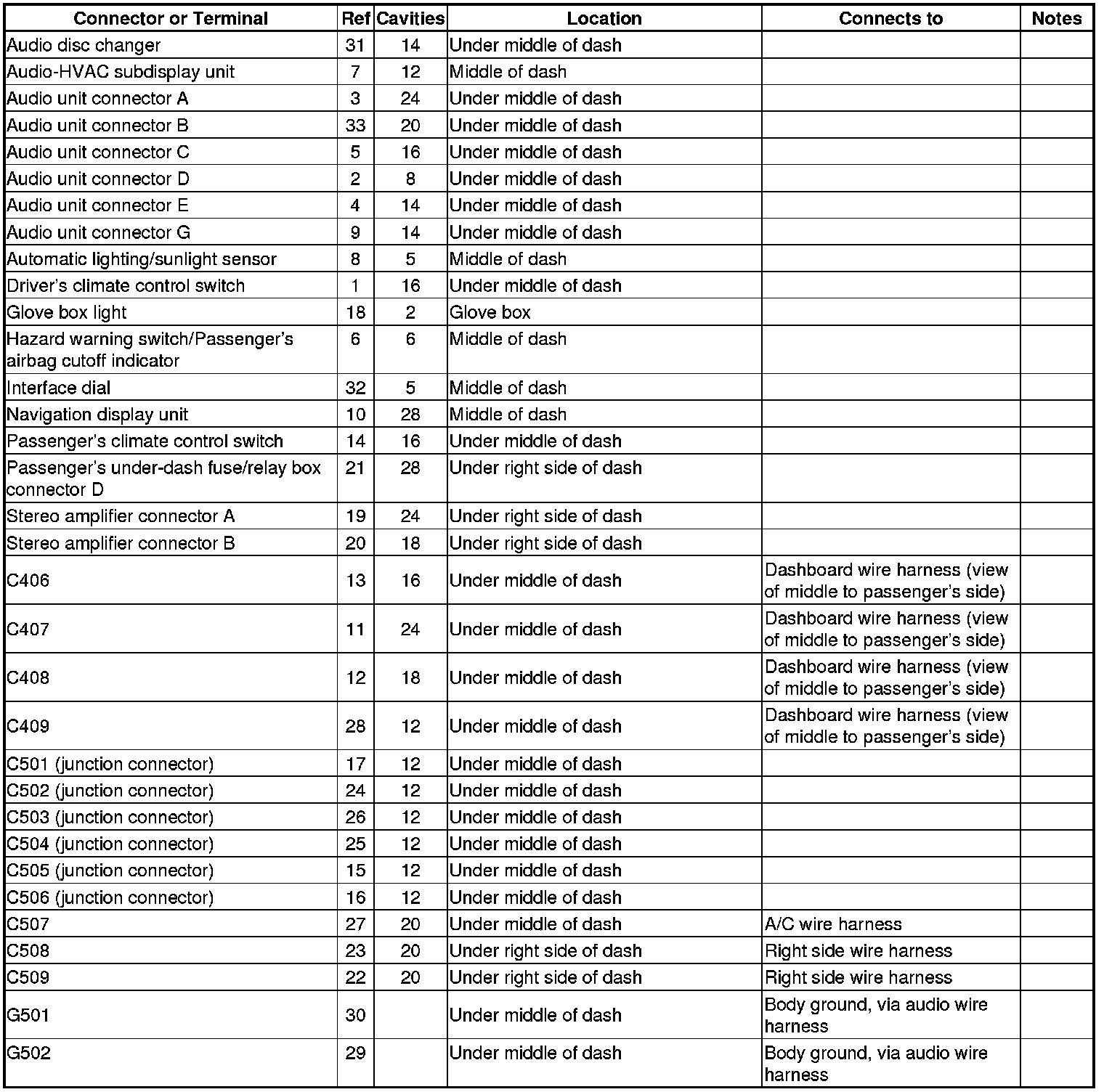

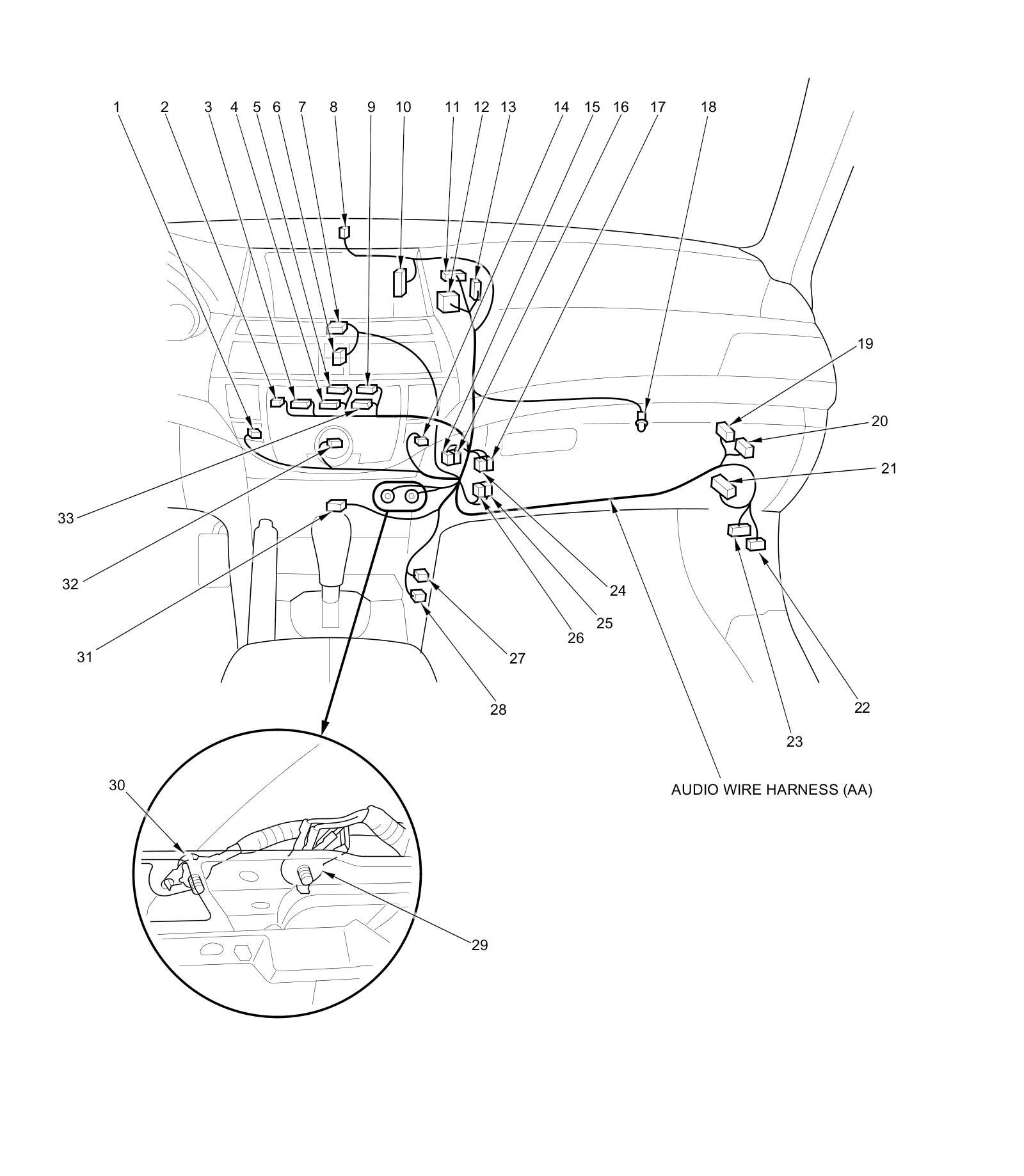

Audio Wire Harness (With Navigation) (AA)

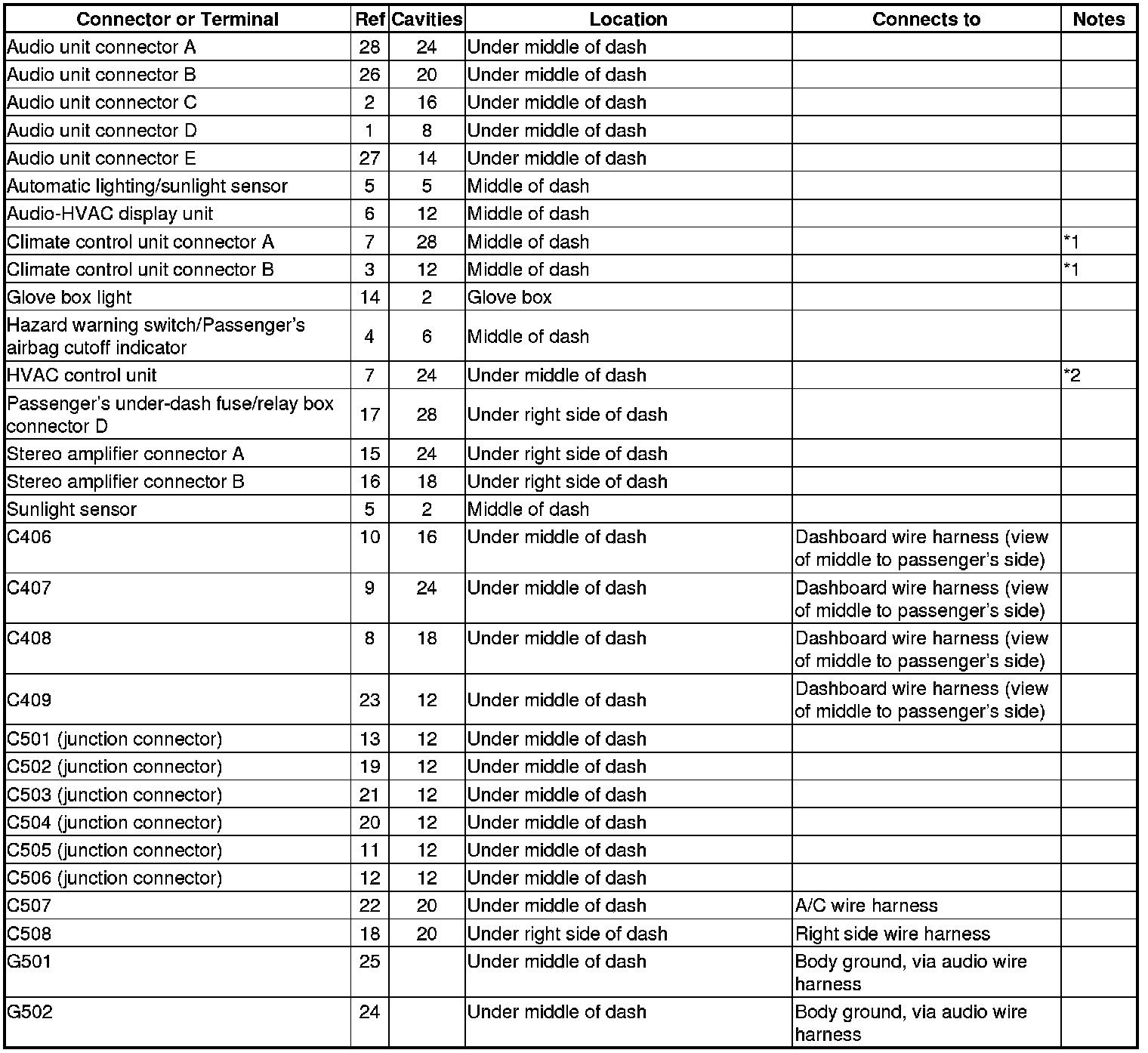

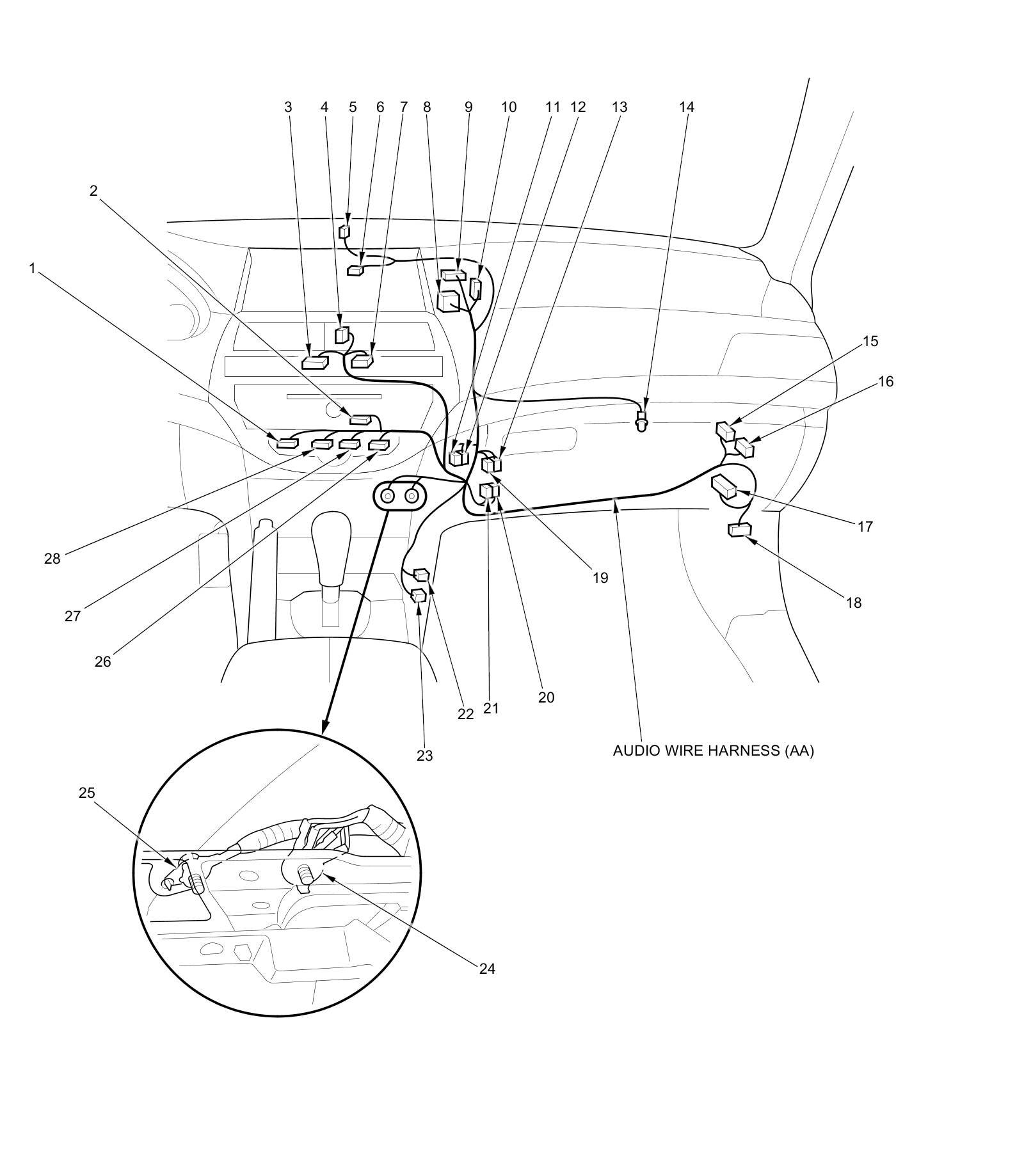

Audio Wire Harness (Without Navigation) (AA)
