Connector And Harness Locations
>>
Console Subharness
Console Subharness

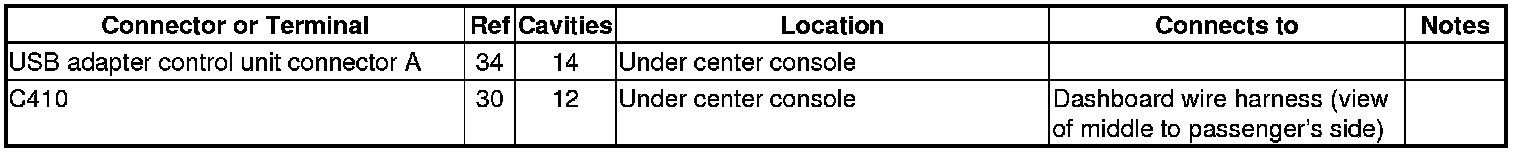

Connector and Harness Locations

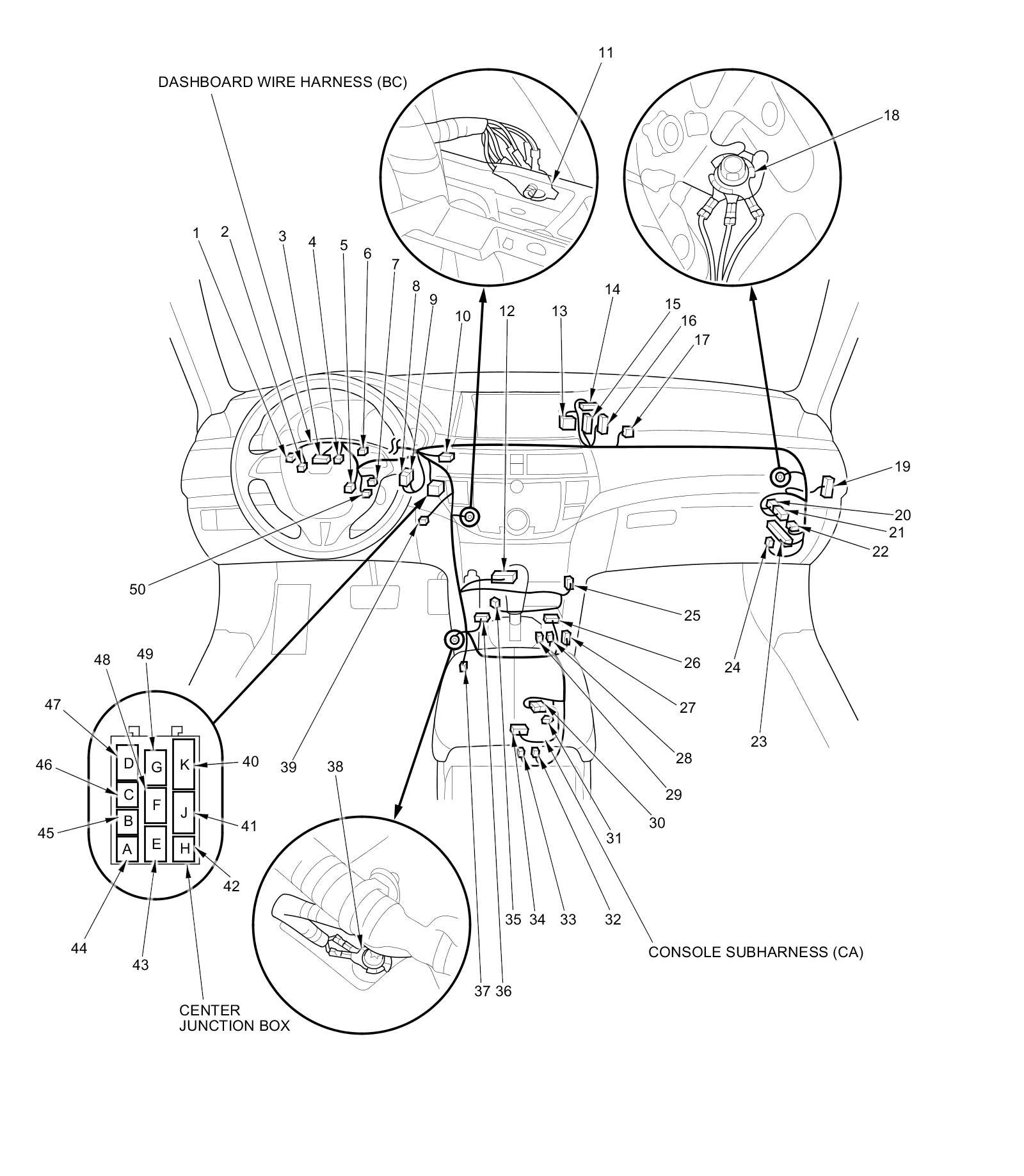

Console Subharness (CA)
