Engine Wire Harness




Connector and Harness Locations

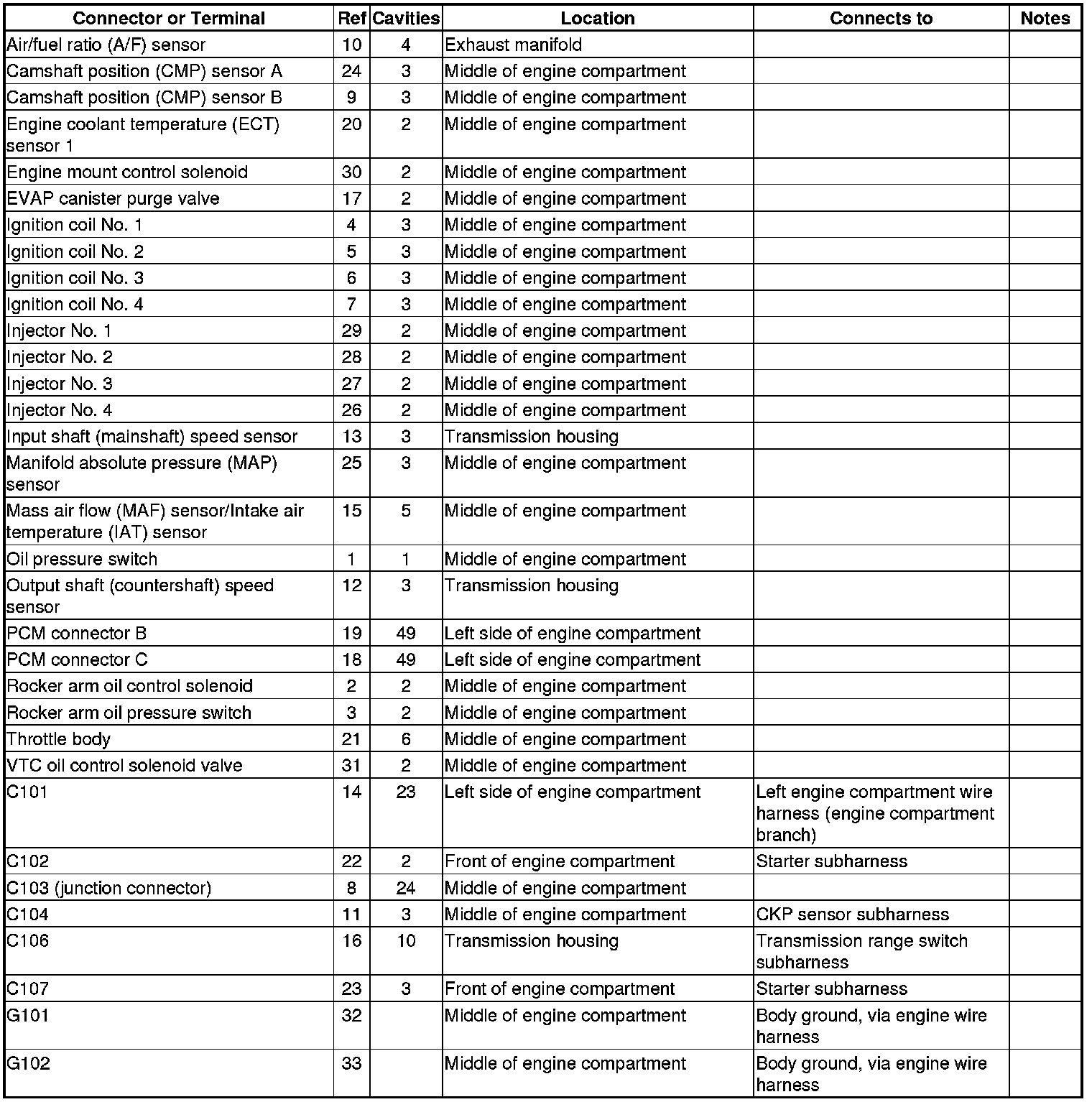

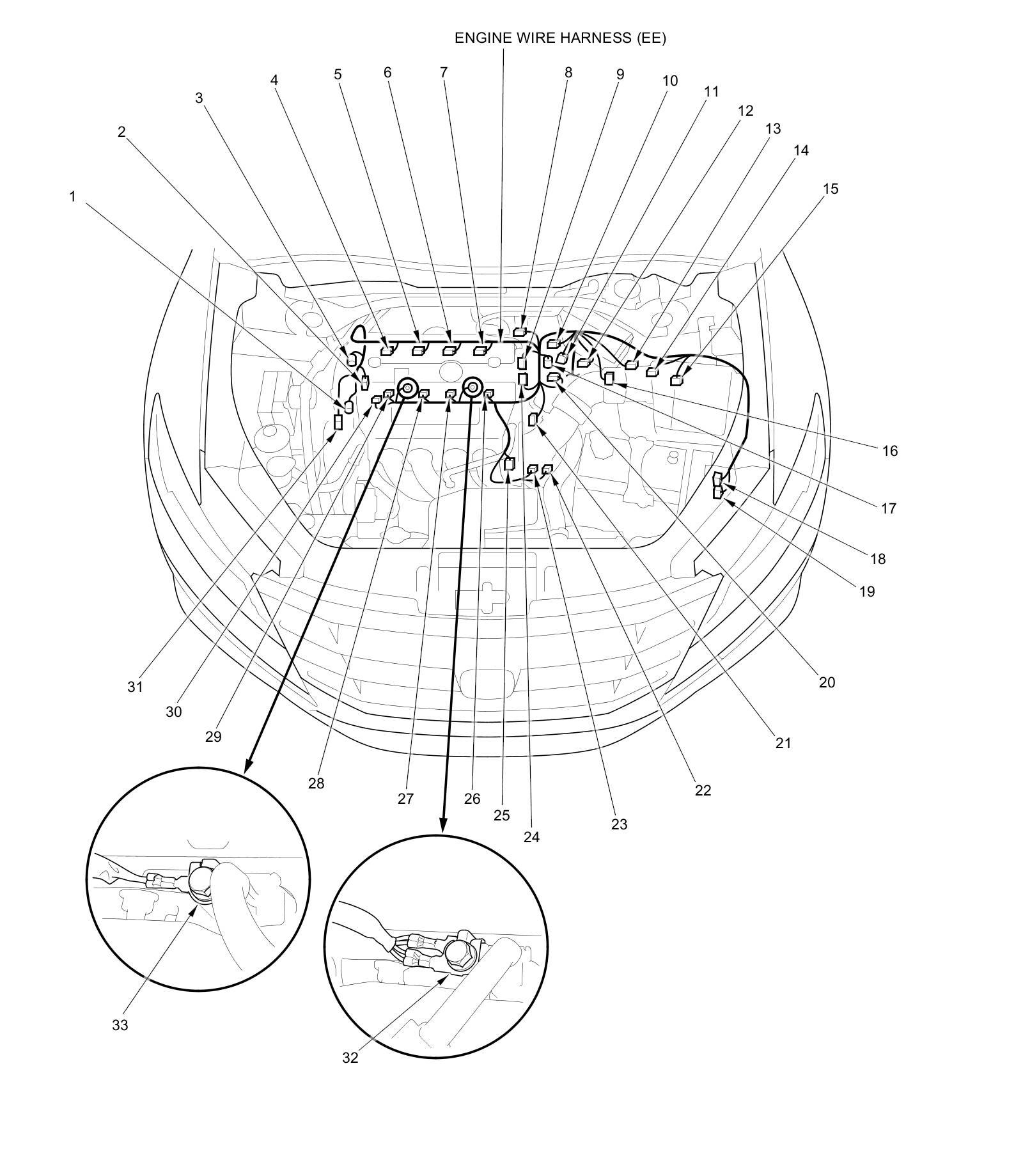

Engine Wire Harness (Engine Section) (EE)

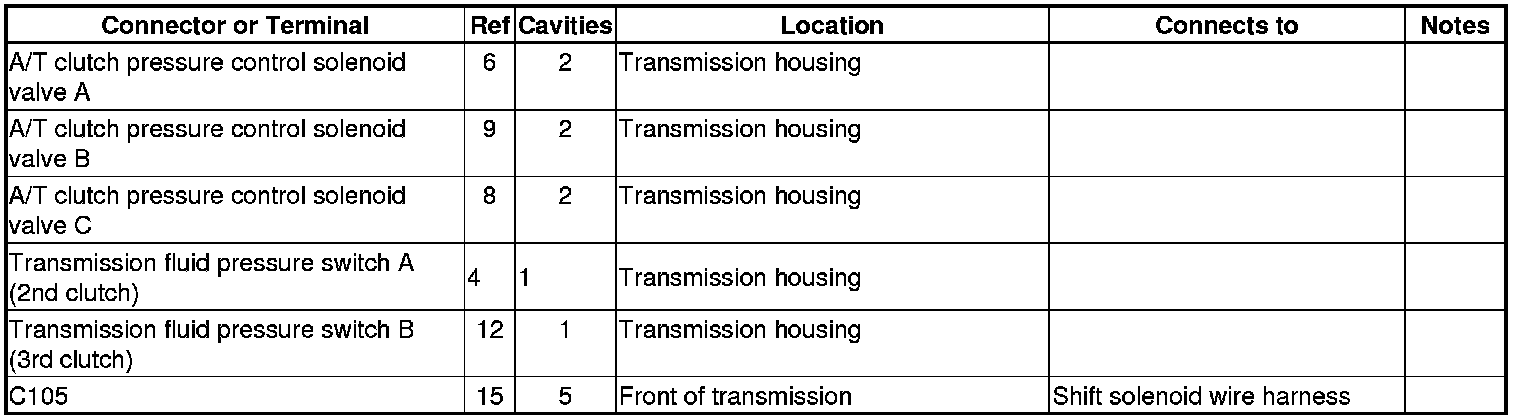

Engine Wire Harness (Transmission Section) (EE)
