Power and Ground Distribution
>>
Locations
>>

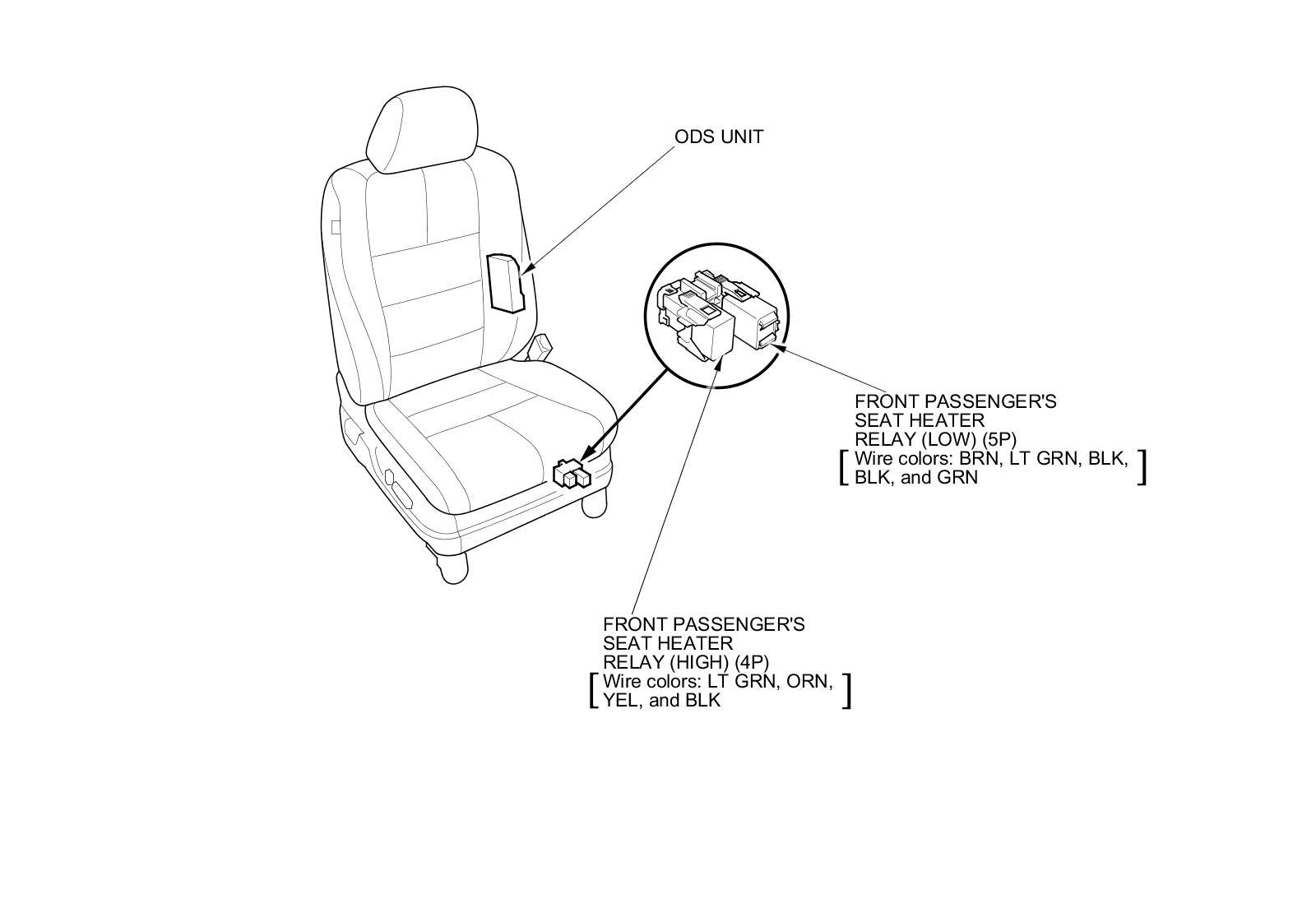

Relay and Control Unit Locations - Seat
Relay and Control Unit Locations - Seat
Relay and Control Unit Locations - Seat
Driver's Seat
Front Passenger's Seat
