SRS DTC Troubleshooting: 61-2x

DTC 61-2x ("x" can be 0 thru 9 or A thru F):

Short in the Driver's Seat Belt Buckle Switch

NOTE:

- Before doing this troubleshooting procedure, find out if the vehicle was in a collision. If so, verify that all the required components were replaced with new components, of the correct part number, and that they were properly installed Service and Repair.
- Before doing this troubleshooting procedure, review SRS Precautions and Procedures Service and Repair and General Troubleshooting Information Reading and Clearing Diagnostic Trouble Codes.

1. Clear the DTCs with the HDS.

2. Turn the ignition switch to LOCK (0), then wait for 10 seconds.

3. Turn the ignition switch to ON (II), then buckle and unbuckle the driver's seat belt several times.

4. Check for the DTCs with the HDS.

Is DTC 61-2x indicated?

YES -

Go to step 5.

NO -

Intermittent failure, the system is OK at this time. Go to Troubleshooting Intermittent Failures. If another DTC is indicated, troubleshoot the DTC.

5. Turn the ignition switch to LOCK (0).

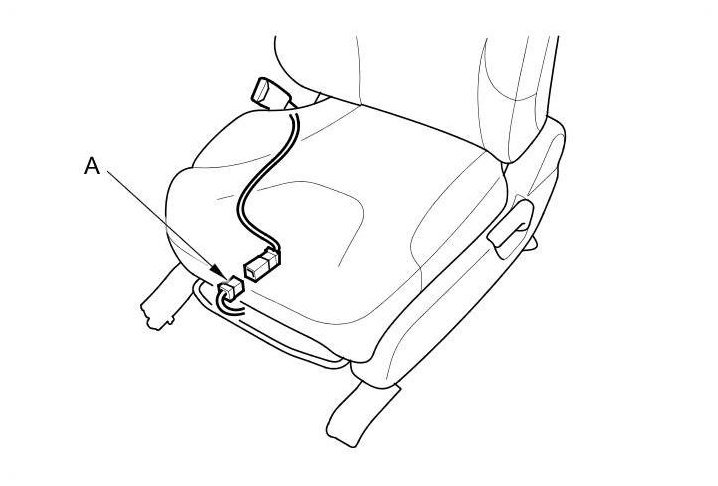

6. Disconnect the driver's seat belt buckle switch 2P connector (A) on the floor wire harness.






7. Clear the DTCs with the HDS.

8. Turn the ignition switch to ON (II), then wait for 10 seconds.

9. Check for DTCs with the HDS.

Is DTC 61-2x indicated?

YES -

Short to ground in the floor wire harness; replace the floor wire harness then clear the DTC.

NO -

Faulty driver's seat belt buckle switch; replace the driver's seat belt buckle assembly, then clear the DTC.
