DTC Troubleshooting




DTC Troubleshooting: P0974 (7)

DTC P0974:

Shift Solenoid Valve A (Open)

NOTE:

- Before you troubleshoot, record all freeze data and any on-board snapshot with the HDS, and review the General Troubleshooting Information How To Troubleshoot The A/T System.
- This code is caused by an electrical circuit problem and cannot be caused by a mechanical problem in the transmission.
- Some wire colors vary according to the model year, and are indicated with an asterisk as follows:
- *(1): '09 - 10 models

1. Clear the DTC with the HDS.

2. Start the engine in P, and wait for at least 1 second.

3. Check that DTC P0974 recurs.

Is DTC P0974 indicated?

YES -

Go to step 7.

NO -

Go to step 4.

4. Select Shift Solenoid A in the Miscellaneous Test Menu, and test shift solenoid valve A with the HDS.

Is a clicking sound heard?

YES -

Go to step 5.

NO -

Go to step 7.

5. Start the engine in P, and wait for at least 1 second. Then:

- Seven-position transmission: Test-drive the vehicle in 2nd gear in D, D3, or 2 for at least 1 second. Slow down to a stop, and wait for at least 1 second.
- Five-position transmission: Test-drive the vehicle in D or in 2nd gear in the sequential sport shift mode in S for at least 1 second. Slow down to a stop, and wait for at least 1 second.

6. Monitor the OBD status for P0974 in the DTCs/Freeze Data in A/T Mode Menu for a pass/fail.

Does the HDS indicate FAILED?

YES -

Go to step 7.

NO -

Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at shift solenoid valve A and the PCM. If the HDS indicates NOT COMPLETED, return to step 4 and recheck.

7. Turn the ignition switch to LOCK (0).

8. Jump the SCS line with the HDS.

9. Disconnect PCM connector B (49P).

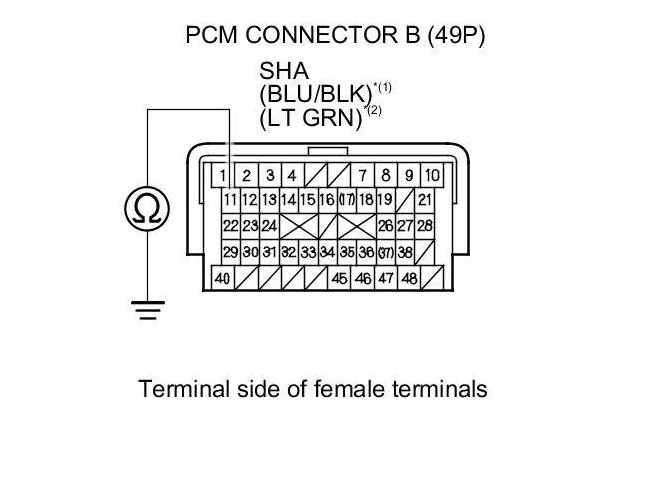

10. Measure the resistance between PCM connector terminal B11 and body ground.





Is there 12-25 Ohms?

YES -

Go to step 15.

NO -

Go to step 11.

11. Disconnect the shift solenoid harness connector.

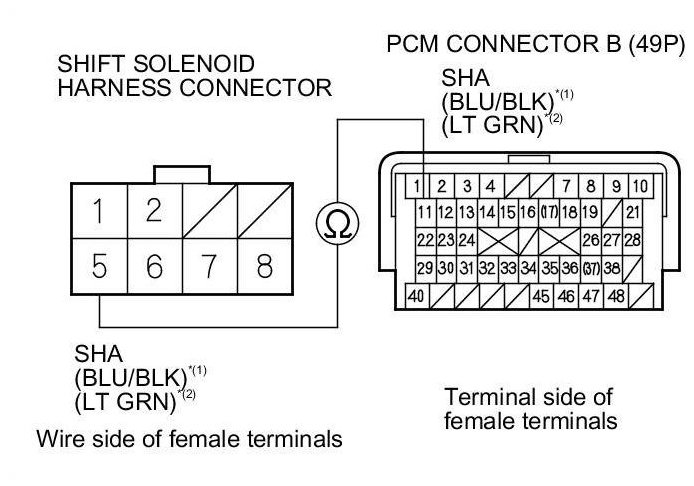

12. Check for continuity between PCM connector terminal B11 and shift solenoid harness connector terminal No. 5.





Is there continuity?

YES -

Go to step 13.

NO -

Repair an open in the wire between PCM connector terminal B11 and the shift solenoid harness connector, then go to step 20.

13. Remove the shift solenoid harness Shift Solenoid Valve And Shift Solenoid Wire Harness Replacement.

14. Check for continuity between shift solenoid harness connector terminal No. 5 and the shift solenoid valve A connector terminal.





Is there continuity?

YES -

Replace shift solenoid valve A Shift Solenoid Valve And Shift Solenoid Wire Harness Replacement, then go to step 20.

NO -

Replace the shift solenoid harness Shift Solenoid Valve And Shift Solenoid Wire Harness Replacement, then go to step 20.

15. Connect PCM connectors.

16. Update the A/T software in the PCM if it does not have the latest software ECM/PCM Update, or substitute a known-good PCM.

17. Test-drive the vehicle:

- Seven-position transmission: Drive the vehicle in 2nd gear in D, D3, or 2 for at least 1 second. Slow down to a stop, and wait for at least 1 second.
- Five-position transmission: Drive the vehicle in D or in 2nd gear in the sequential sport shift mode in S for at least 1 second. Slow down to a stop, and wait for at least 1 second.

18. Check for Pending or Confirmed DTCs with the HDS.

Is DTC P0974 indicated?

YES -

If the PCM was updated, substitute a known-good PCM, then recheck. If the PCM was substituted, go to step 1.

NO -

Go to step 19.

19. Monitor the OBD status for P0974 in the DTCs/Freeze Data in A/T Mode Menu for a pass/fail.

Does the HDS indicate PASSED?

YES -

If the PCM was updated, troubleshooting is complete. If the PCM was substituted, replace the original PCM Service and Repair. If any other DTCs were indicated on step 18, go to the indicated DTC's troubleshooting.

NO -

Check for poor connections and loose terminals at shift solenoid valve A and the PCM. If the PCM was updated, substitute a known-good PCM, then recheck. If the PCM was substituted, go to step 1. If the HDS indicates NOT COMPLETED, return to step 17 and recheck.

20. Reconnect all connectors.

21. Clear the DTC with the HDS.

22. Test-drive the vehicle:

- Seven-position transmission: Drive the vehicle in 2nd gear in D, D3, or 2 for at least 1 second. Slow down to a stop, and wait for at least 1 second.
- Five-position transmission: Drive the vehicle in D or in 2nd gear in the sequential sport shift mode in S for at least 1 second. Slow down to a stop, and wait for at least 1 second.

23. Check for Pending or Confirmed DTCs with the HDS.

Is DTC P0974 indicated?

YES -

Check for poor connections and loose terminals at shift solenoid valve A and the PCM, then go to step 1.

NO -

Go to step 24.

24. Monitor the OBD status for P0974 in the DTCs/Freeze Data in A/T Mode Menu for a pass/fail.

Does the HDS indicate PASSED?

YES -

Troubleshooting is complete. If any other DTCs were indicated on step 23, go to the indicated DTC's troubleshooting.

NO -

Check for poor connections and loose terminals at shift solenoid valve A and the PCM, go to step 1. If the HDS indicates NOT COMPLETED, return to step 22 and recheck.
