SD Module Removal/Installation (With Navigation)

SD Module Removal/Installation

NOTE:

- Lay a workshop towel under the parts when working on them to protect the face panel from scratches or other damage.
- Do not work in a dusty or dirty place.
- Discharge static electricity from your body before and during the work.
- Do not touch the circuit board(s) with your bare hands.
- Do not work with dirty hands.
- Do not touch the terminal connector of the flat plate cable with your bare hands (If you have touched it, wipe it off thoroughly.).
- Eject the discs before removing the audio-navigation unit to prevent damaging the CD/DVD player's load mechanism.
- If you are replacing the audio-navigation unit, write down the audio presets (if possible), then enter them into the new audio-navigation unit.
- If the audio-navigation unit is replaced or disconnected, a Map Matching must be done.

1. Remove the audio-navigation unit Audio-Navigation Unit Removal/Installation (With Navigation).

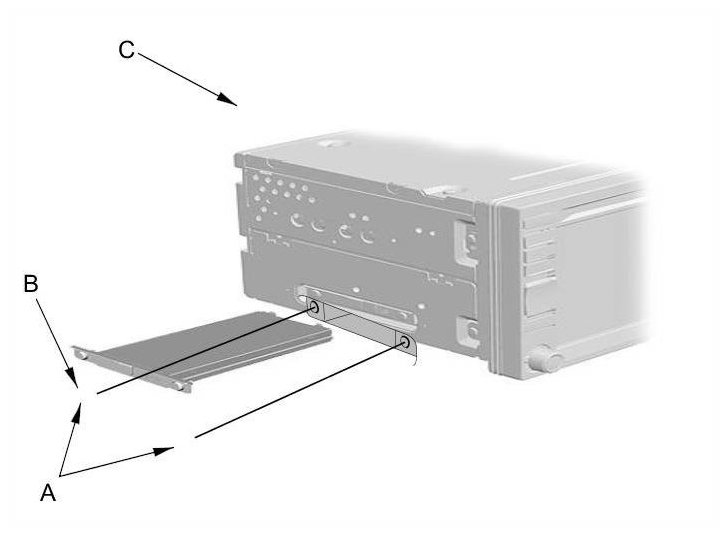

2. Loosen the screws (A), then put out the SD module (B) with the screws from the audio-navigation unit (C).





3. Install the SD module reverse order of removal.

NOTE: Make sure the SD module is properly aligned when installing the SD module.

4. Install the audio-navigation unit Audio-Navigation Unit Removal/Installation (With Navigation).
