Initial Inspection and Diagnostic Overview

Audio System Self-Diagnostic Function

The audio system has a self-diagnostic function.

The audio-navigation unit (with navigation) does not support this function.

NOTE:

- Not all self-diagnostic functions appear on all models.
- There may be other self-diagnostic functions that are for factory use only.
- The self-diagnostic function does not find every problem with the audio system. Check any official Honda service website for more information about the audio system.

How to Obtain the Audio Unit Serial Number

NOTE: This procedure can only be done after the power has been disconnected and reconnected to the audio unit, and the audio unit displays CODE when the audio unit is turned on.

1. Turn the ignition switch to ON (II).

2. Make sure the audio system is turned off.

3. Press and hold the preset No. 1 and No. 6 buttons.

4. While holding the buttons, push the power button (A) on.





5. Release the buttons, and the self-diagnosis begins.

6. The display shows an 8-digit serial number.






7. Use all 8 numbers as the serial number when using the Interactive Network (iN) to retrieve the 5-digit anti-theft code.

8. The self-diagnostic mode ends when you turn off the audio unit or turn the ignition switch to LOCK (0).

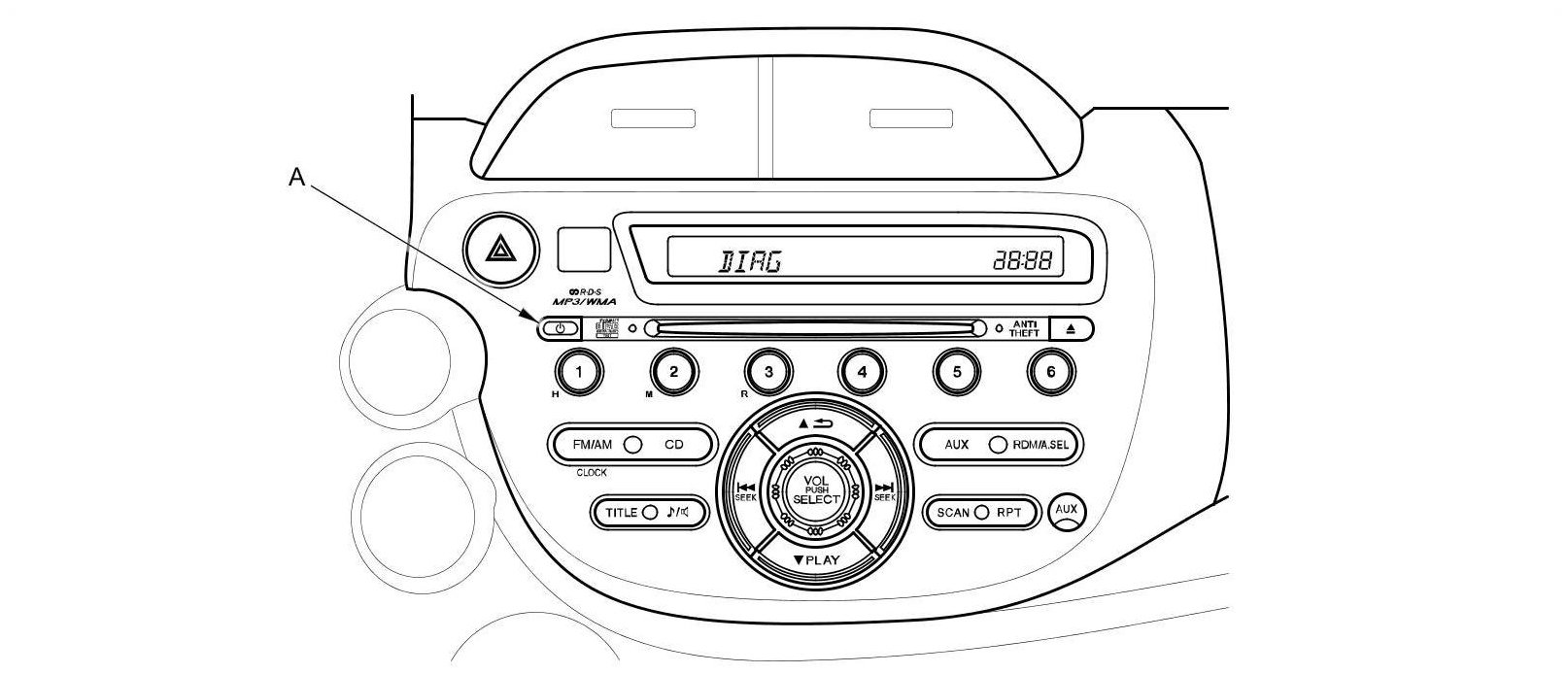

How to Use the Audio System Self-diagnostic Function

1. Turn the ignition switch to ON (II).

2. Make sure the audio system is turned off.

3. Push and hold the preset No. 1 and No. 6 buttons.

4. While holding the buttons, push the power button (A) to on.





5. Release the buttons and the self-diagnostic mode begins.

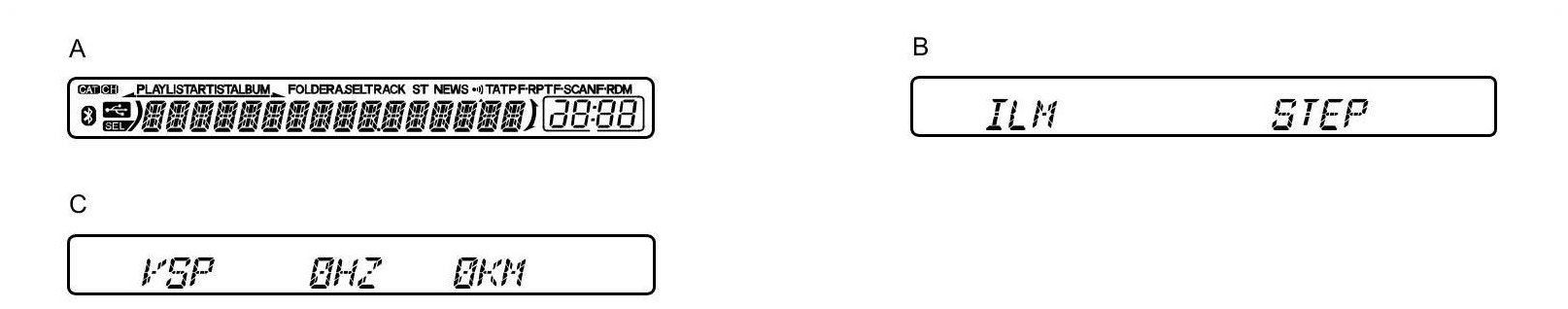

6. When you are in the self-diagnostic mode, pressing a preset button starts the diagnostic mode that is assigned to that preset switch.










7. If the diagnosis result is not matching the desired result, do the applicable system troubleshooting.

8. The self-diagnostic mode ends when you turn off the audio unit or turn the ignition switch to LOCK (0).

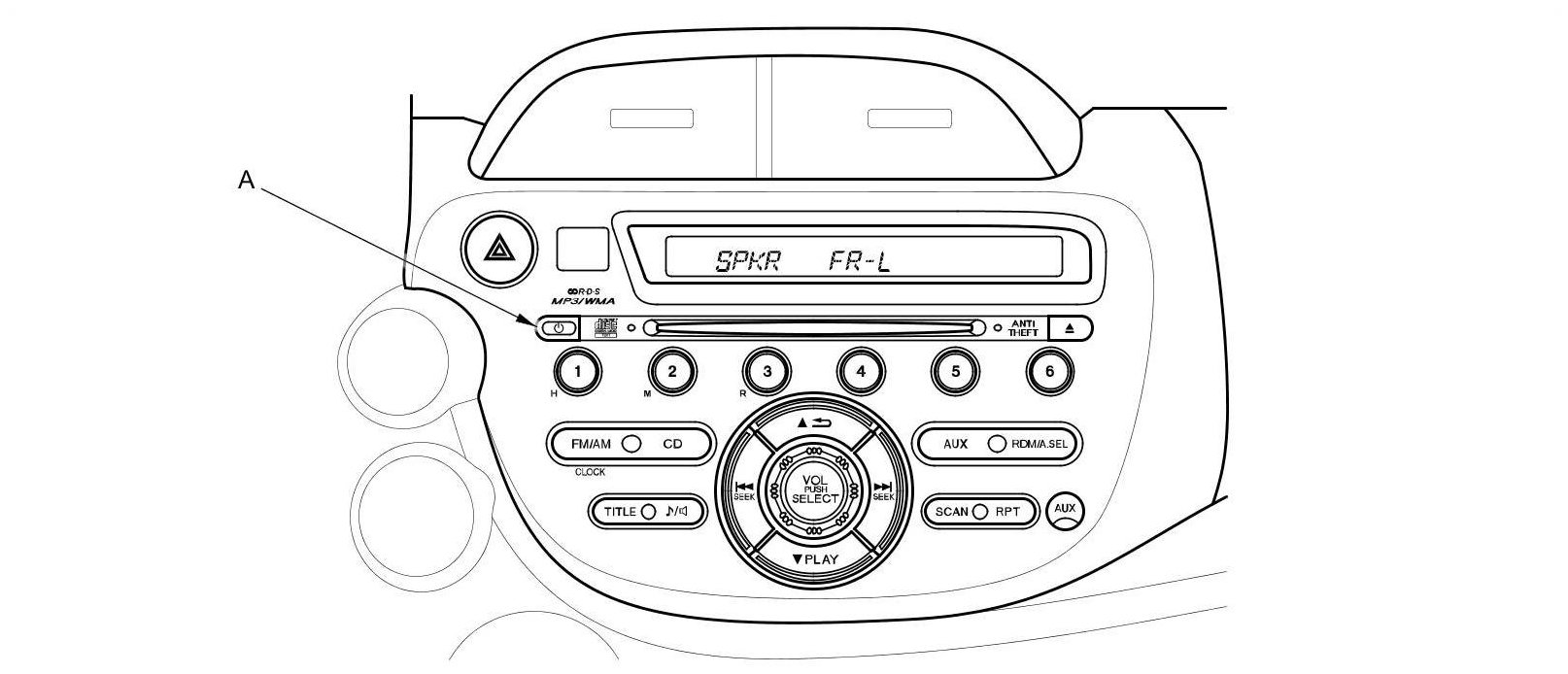

Speaker Check Mode

NOTE:

- There may be other self-diagnostic functions that are for factory use only.

- If no sound is heard from the speakers, go to No sound is heard from the speaker(s) No Sound Is Heard From The Speaker(s) (Display Is Normal) (Without Navigation).

1. Turn the ignition switch to ON (II).

2. Make sure the audio system is turned off.

3. Push and hold the preset No. 1 and No. 3 buttons.

4. While holding the buttons, push the power button (A) on.





5. Release the buttons and the speaker check mode begins.

6. Each time you press the SKIP or SKIP button, the speaker outputs a beep and tests the speakers in the order listed.

NOTE: Adjust the volume level to a comfortable level with the VOL PUSH SELECT knob.

Order of Speakers













7. If any speaker(s) fail to sound, go to symptom troubleshooting.

8. To end the speaker check mode, turn the audio unit off, or turn the ignition switch to LOCK (0).

NOTE: The volume level remains at the same level as when you did the speaker test. If you turned the volume up to do the speaker mode test, return the volume to its normal level.
