Mirror Housing Cover Replacement

Mirror Housing Cover Replacement

1. Remove the mirror holder Mirror Holder Replacement.

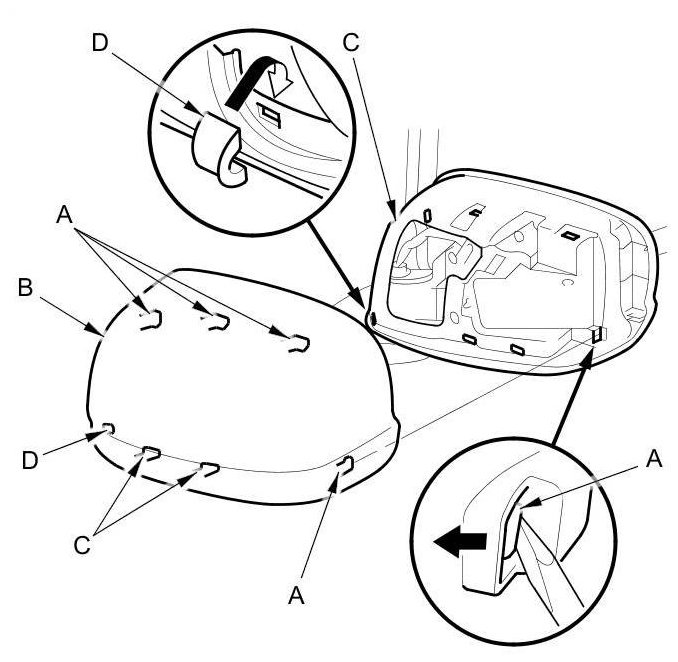

2. From the mirror holder opening, release the tabs (A) of the mirror housing cover (B).





3. Release the hooks (C, D), then remove the mirror housing cover.

4. Install the mirror housing cover in the reverse order of removal.
