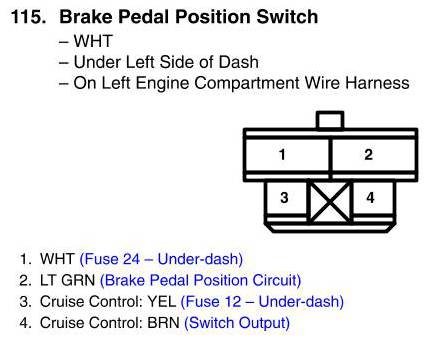

View 115 - Brake Pedal Position Switch Connector View
View 115 - Brake Pedal Position Switch Connector View
