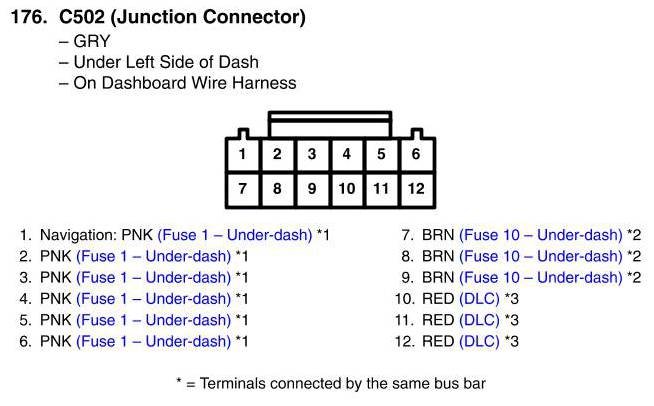

View 176 - C502 (Junction Connector) Connector View
View 176 - C502 (Junction Connector) Connector View
