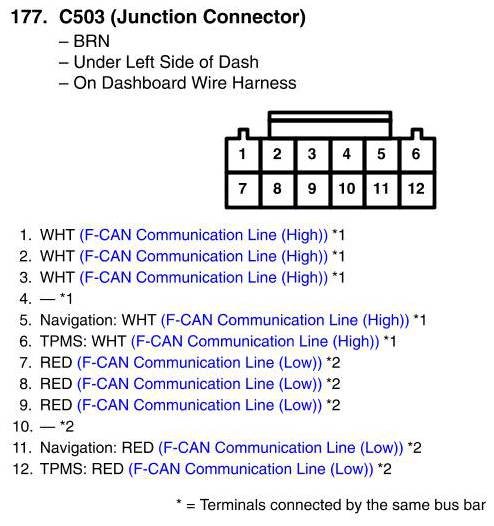

View 177 - C503 (Junction Connector) Connector View
View 177 - C503 (Junction Connector) Connector View
