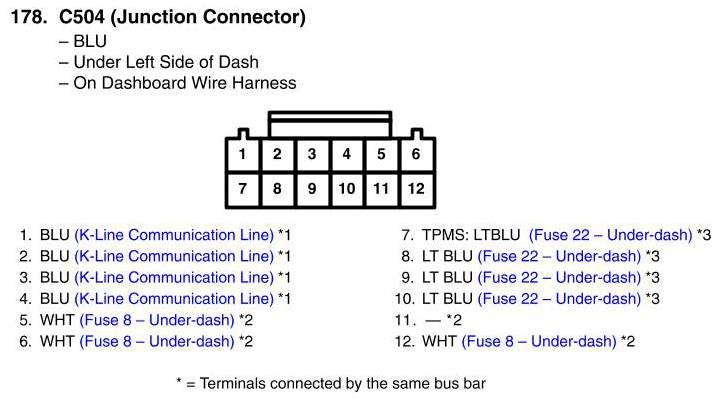

View 178 - C504 (Junction Connector) Connector View
View 178 - C504 (Junction Connector) Connector View
