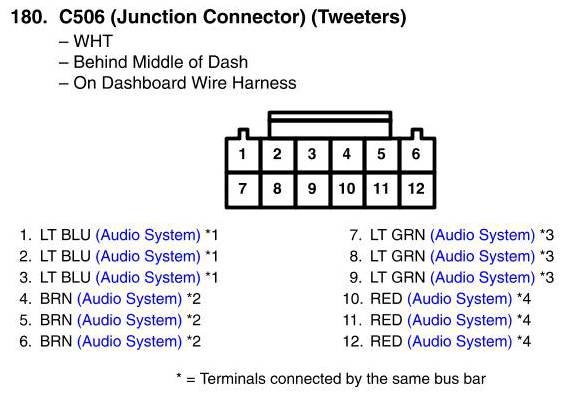

View 180 - C506 (Junction Connector) Connector View (Tweeters)
View 180 - C506 (Junction Connector) Connector View (Tweeters)
