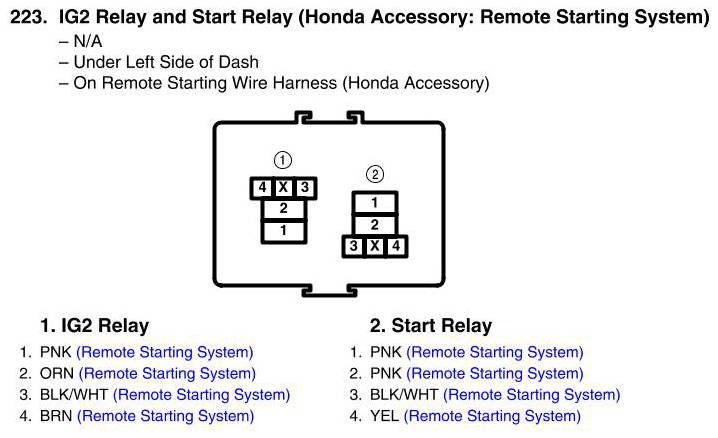

View 223 - IG2 Relay And Start Relay Connector View (Honda Accessory: Remote Starting System)
View 223 - IG2 Relay And Start Relay Connector View (Honda Accessory: Remote Starting System)
