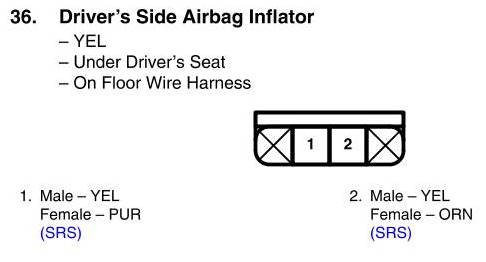

View 36 - Driver's Side Airbag Inflator Connector View
View 36 - Driver's Side Airbag Inflator Connector View
