Dashboard Wire Harness




Connector and Harness Locations

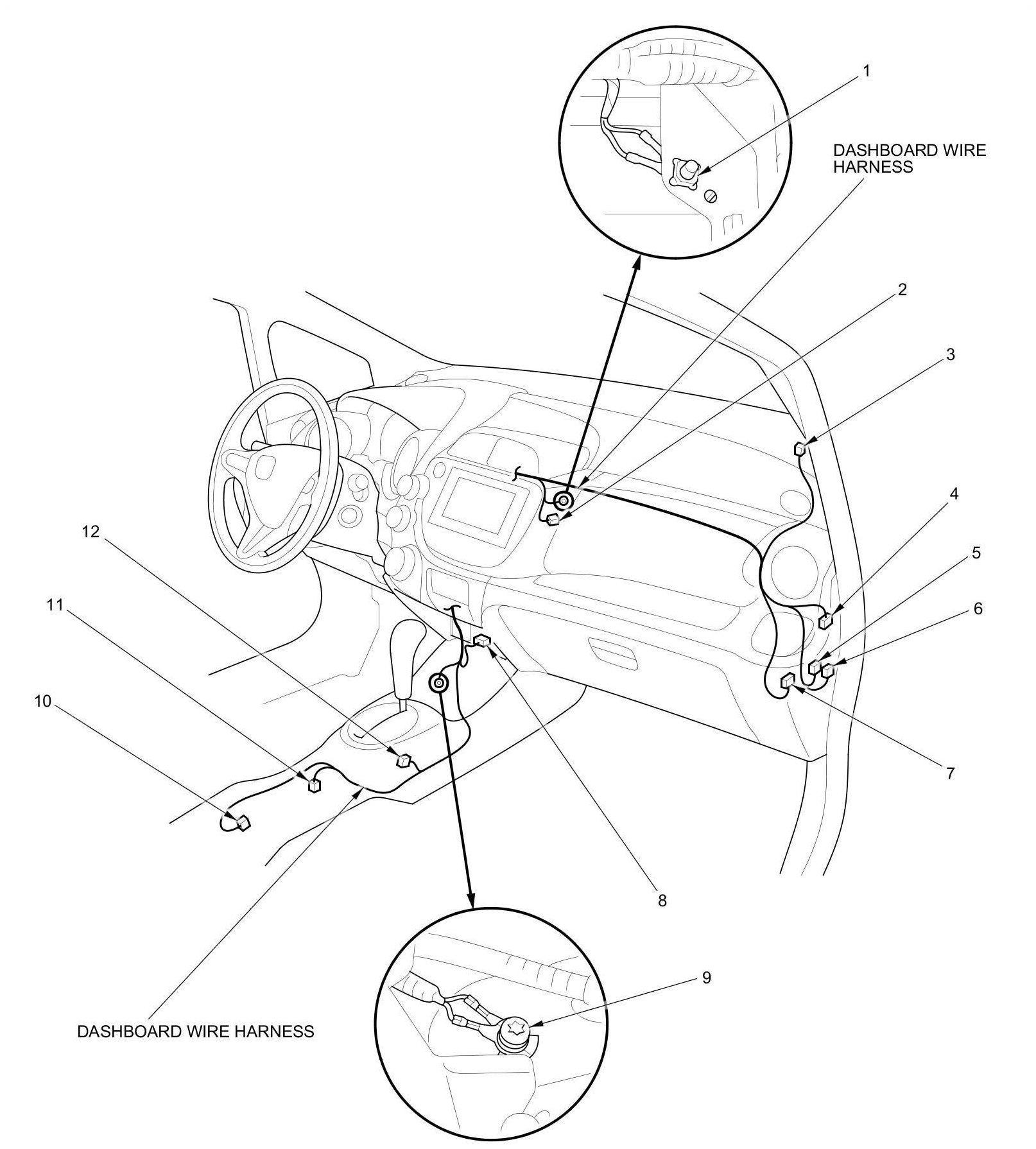

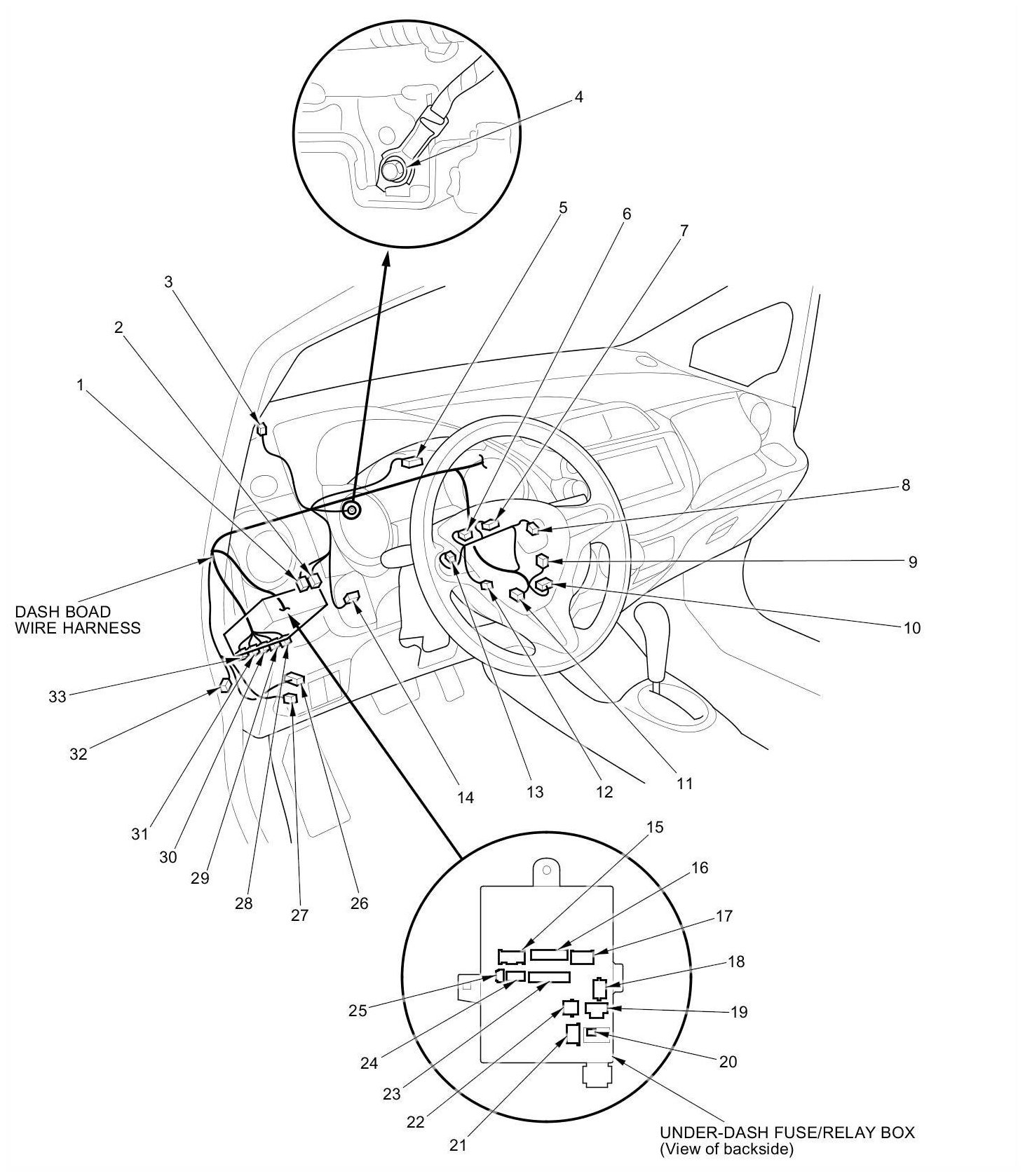

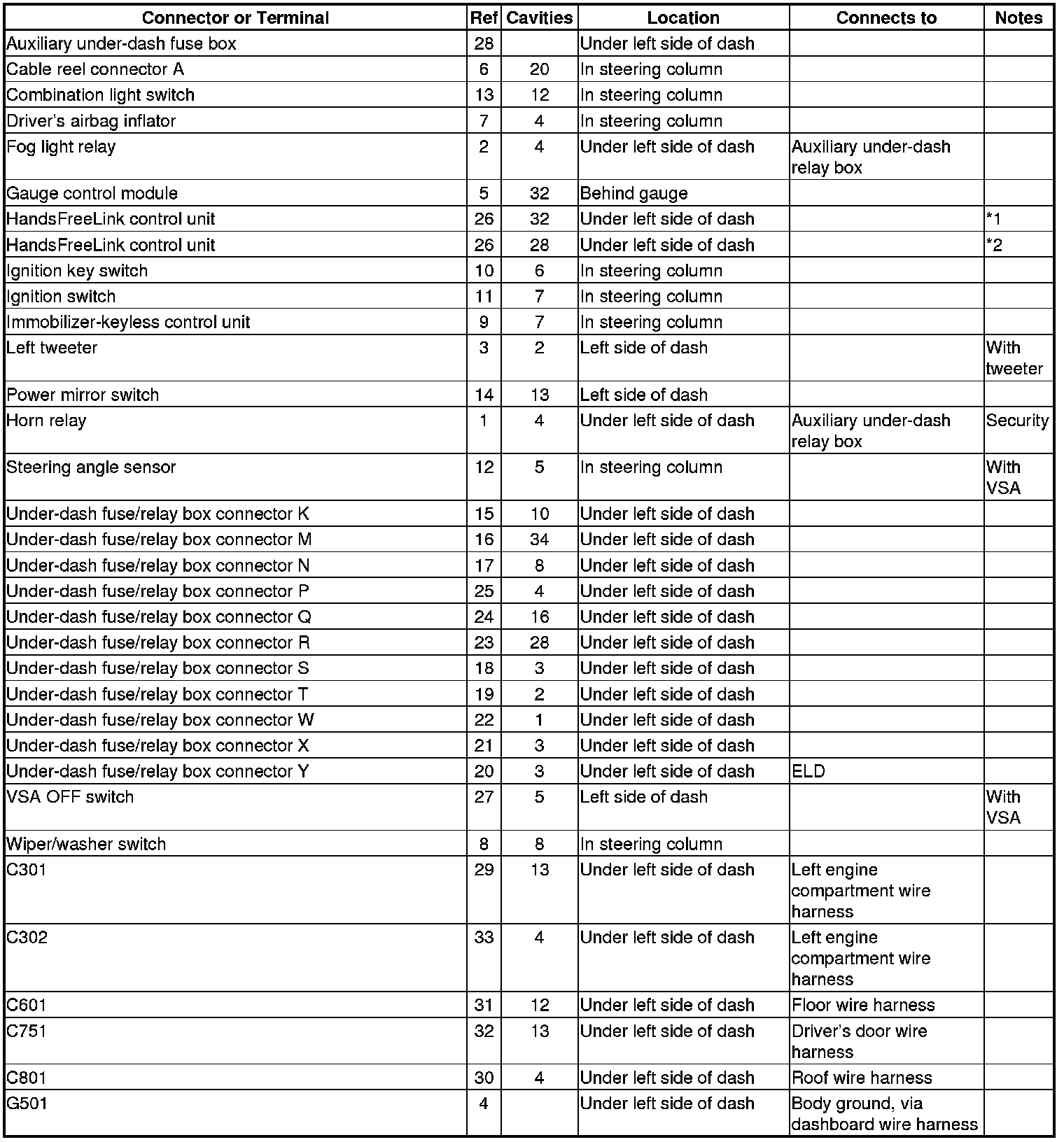

Dashboard Wire Harness (View of driver's side)

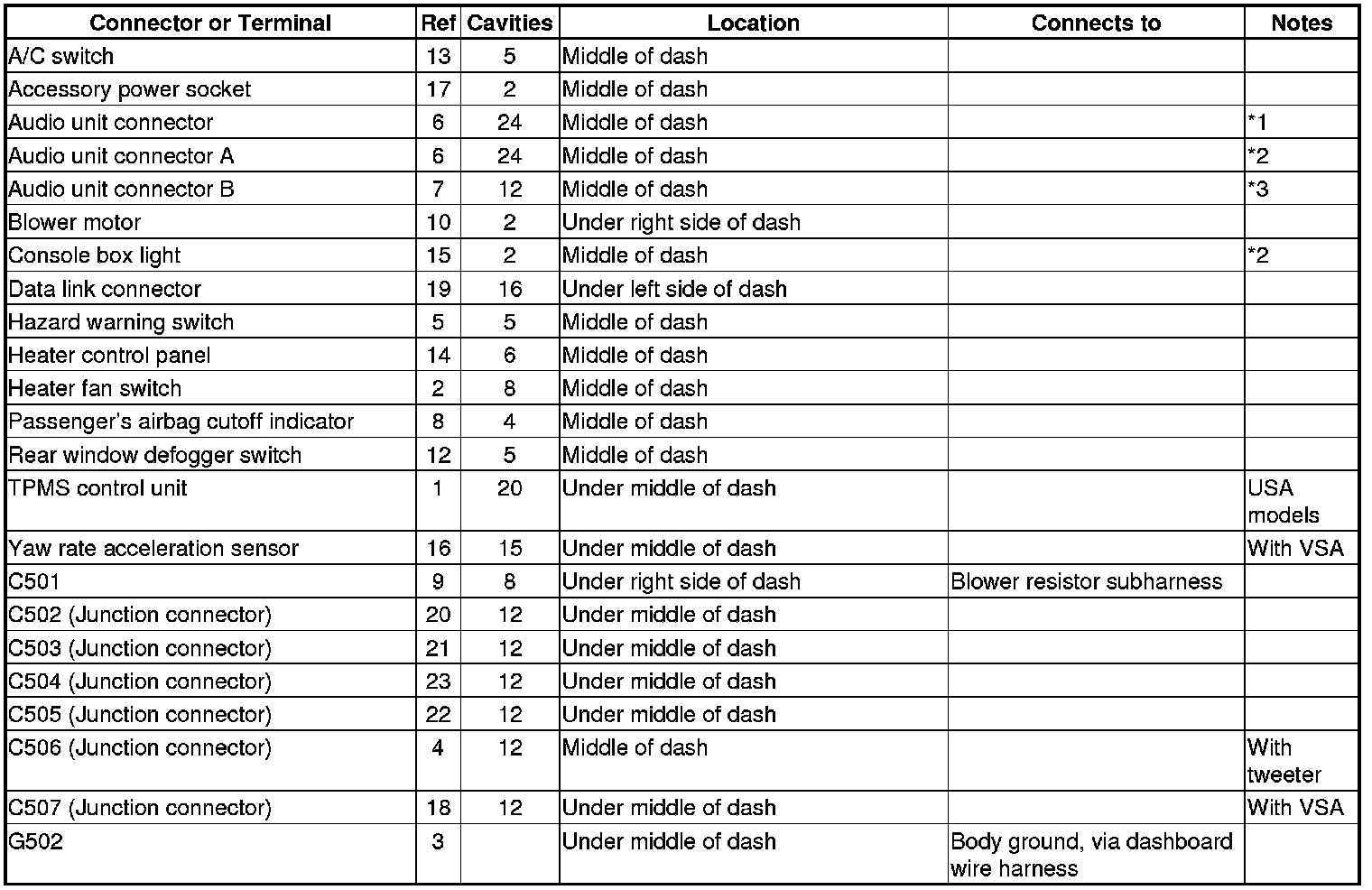

Dashboard Wire Harness (View of middle section) (With Navigation)










Dashboard Wire Harness (View of middle section) (Without Navigation)

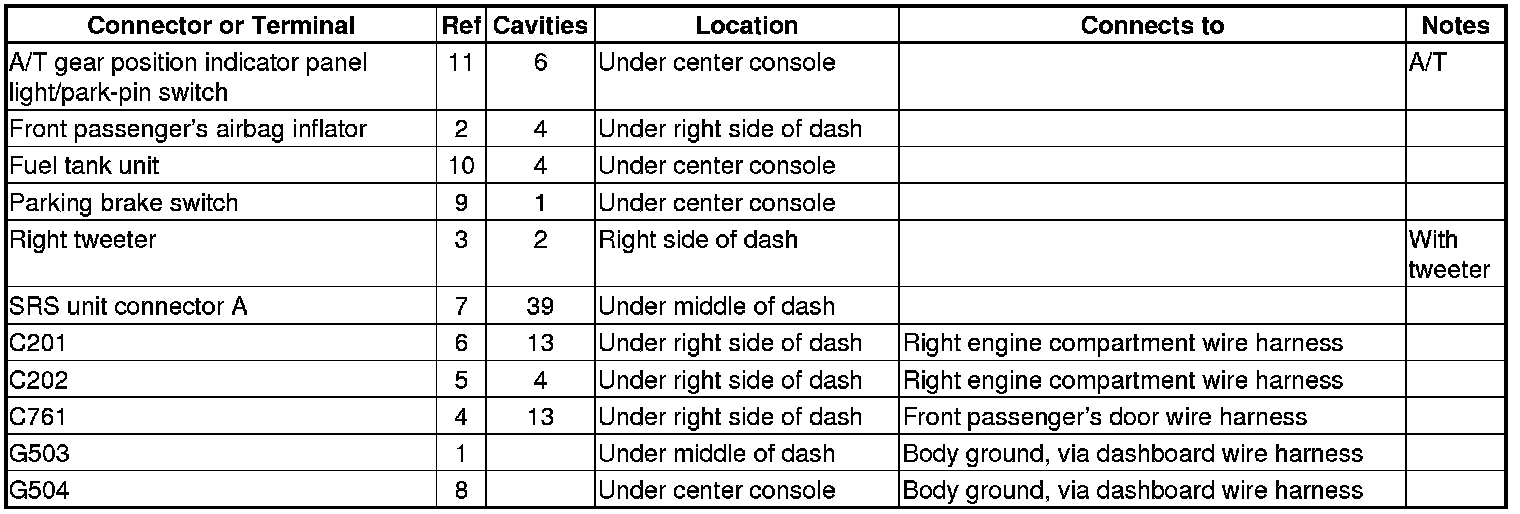

Dashboard Wire Harness (View of passenger's side) (With Navigation)














Dashboard Wire Harness (View of passenger's side) (Without Navigation)
