Home
>>
Honda
>>
2012
>>
Fit L4-1.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>

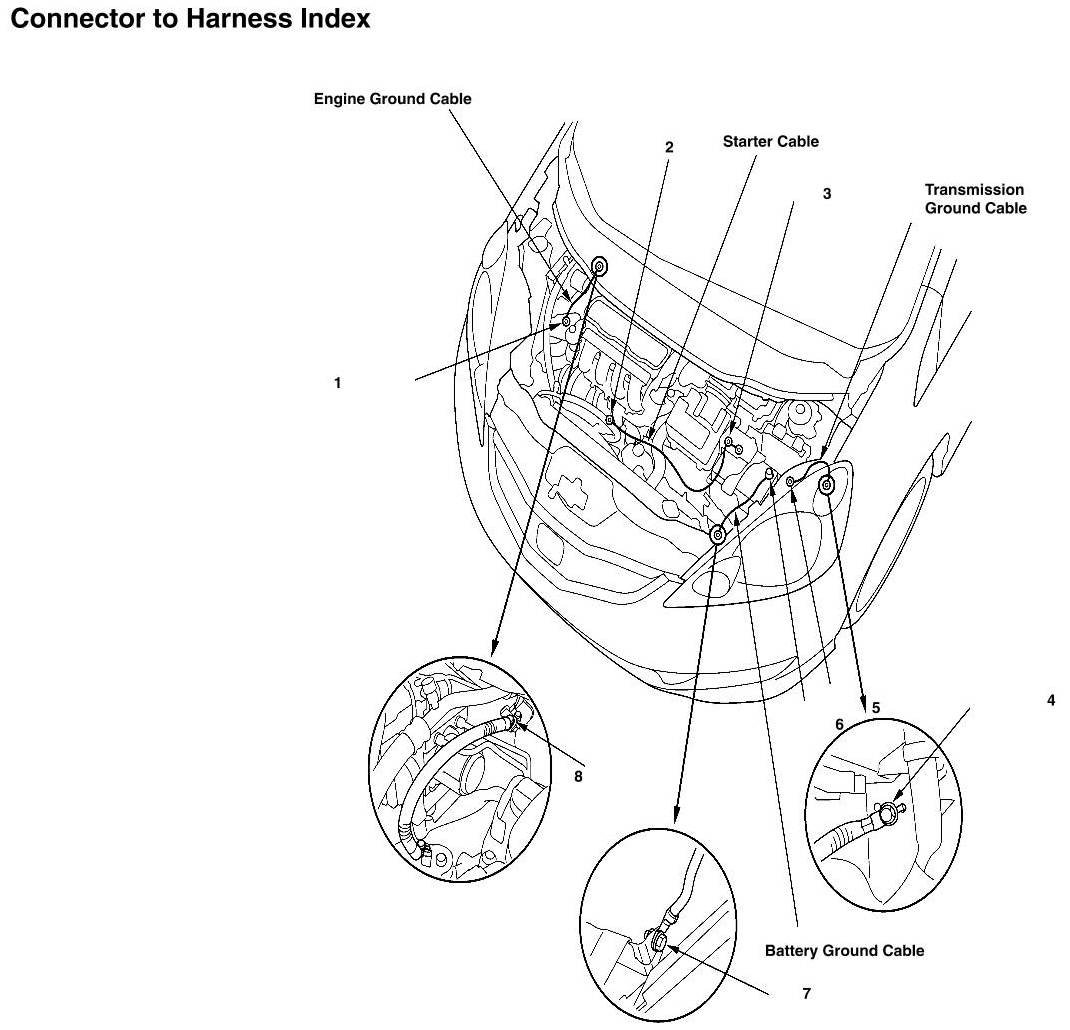

Engine Ground Cable, Starter Cable, Transmission Ground Cable, And Battery Ground Cable
Engine Ground Cable, Starter Cable, Transmission Ground Cable, And Battery Ground Cable
