Home >> Honda >> 2012 >> Fit L4-1.5L >> Repair and Diagnosis >> Diagrams >> Harness >> Engine Wire Harness (Engine Side) And CKP Sensor Sub-Harness (A/T)

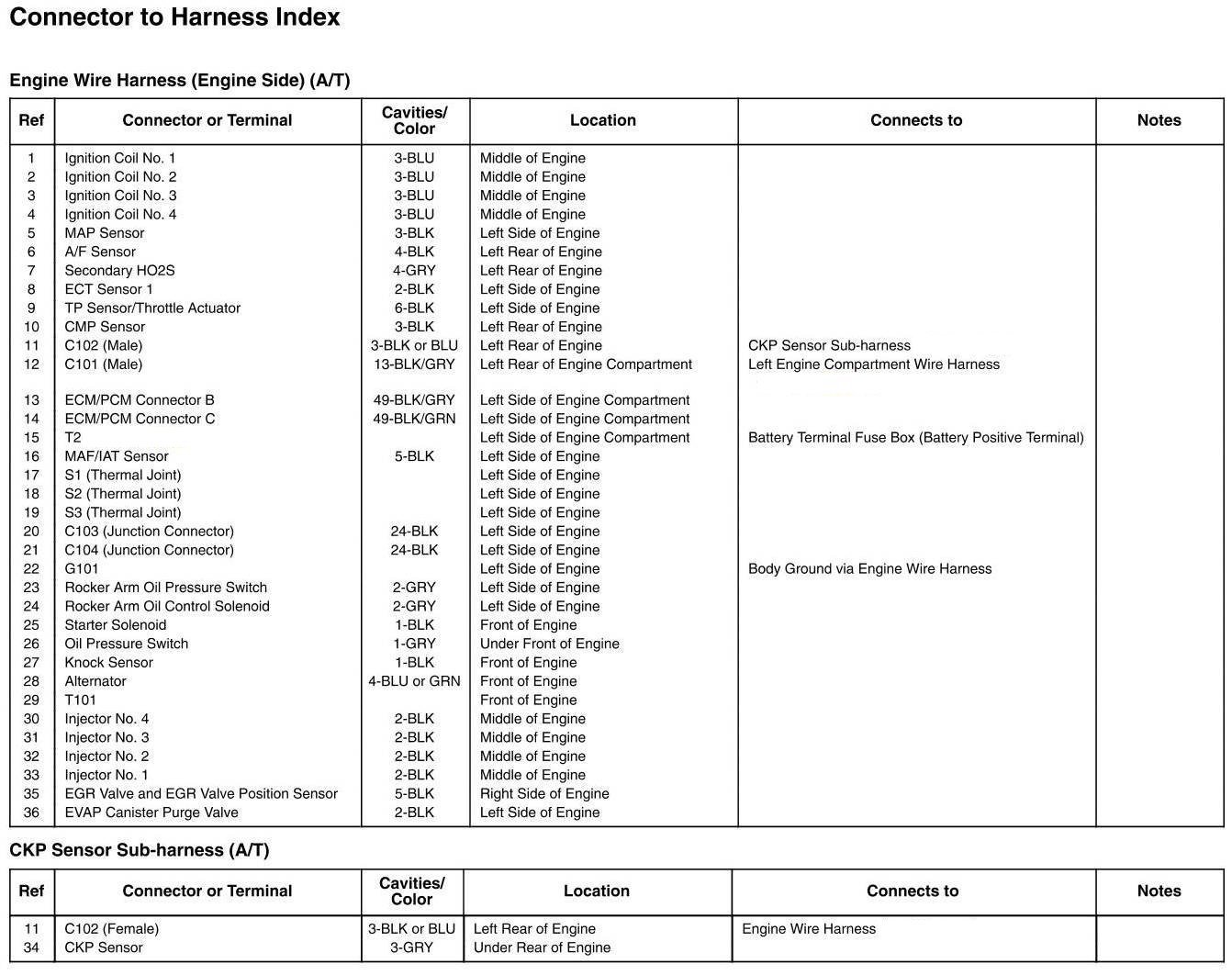

Engine Wire Harness (Engine Side) And CKP Sensor Sub-Harness (A/T)
