USB Adapter Cable
USB Adapter Cable

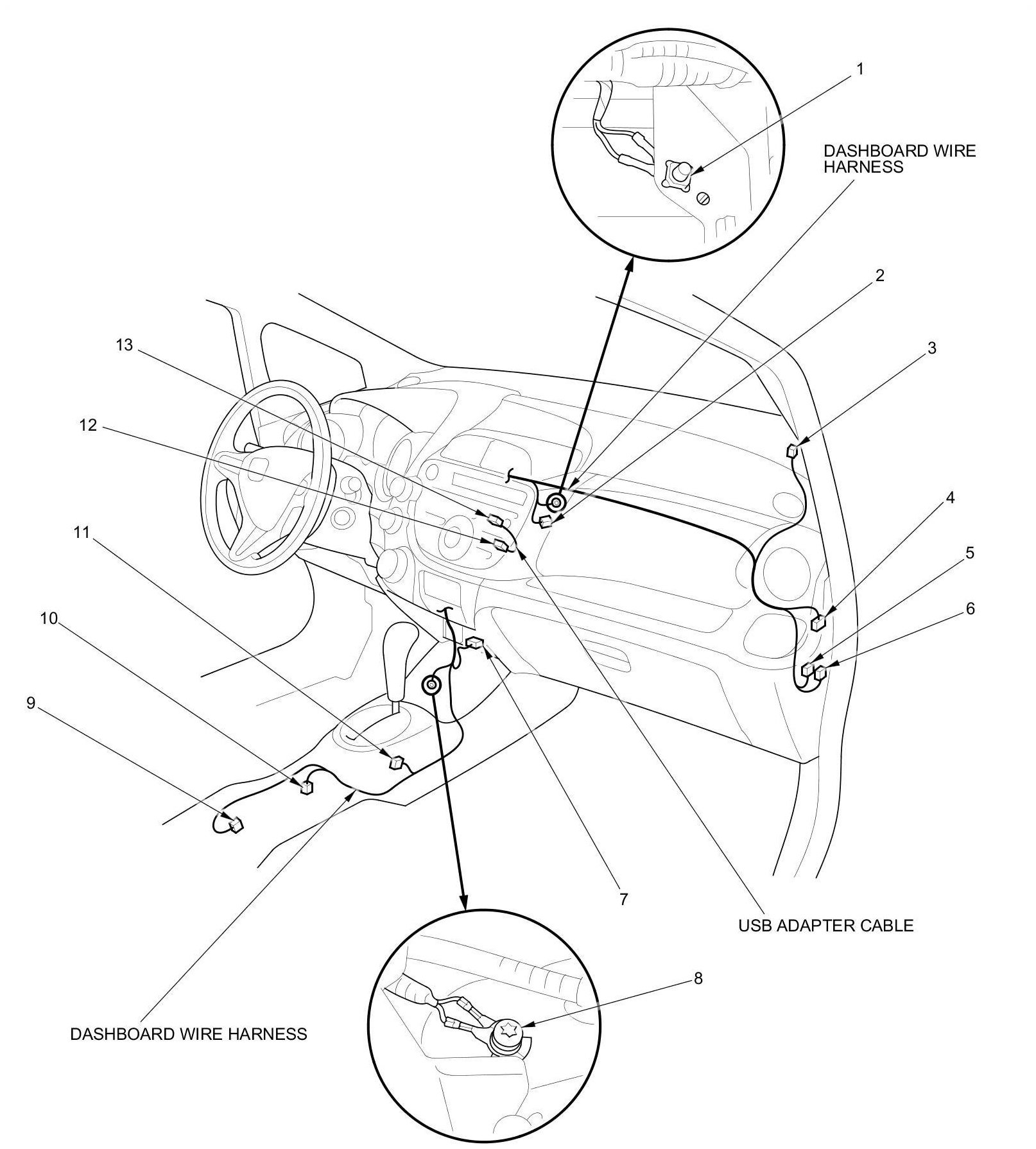

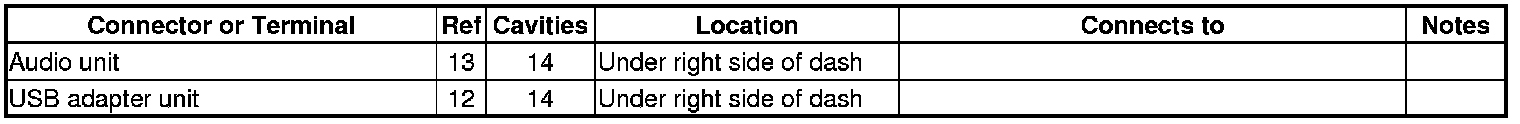

Connector and Harness Locations
USB Adapter Cable (Without Navigation)
