Exterior Lights (MICU) Input Test

Exterior Lights (MICU) Input Test

NOTE: Before performing the input tests, check the No. 1, No. 5, No. 15, No. 22, No. 24, No. 28, No. 29, No. 32, No. 34, No. 48, and No. 51 fuses in the under-dash fuse/relay box.

1. Turn the ignition switch to LOCK (0).

2. Remove the fuse access panel Fuse Access Panel Removal/Installation.

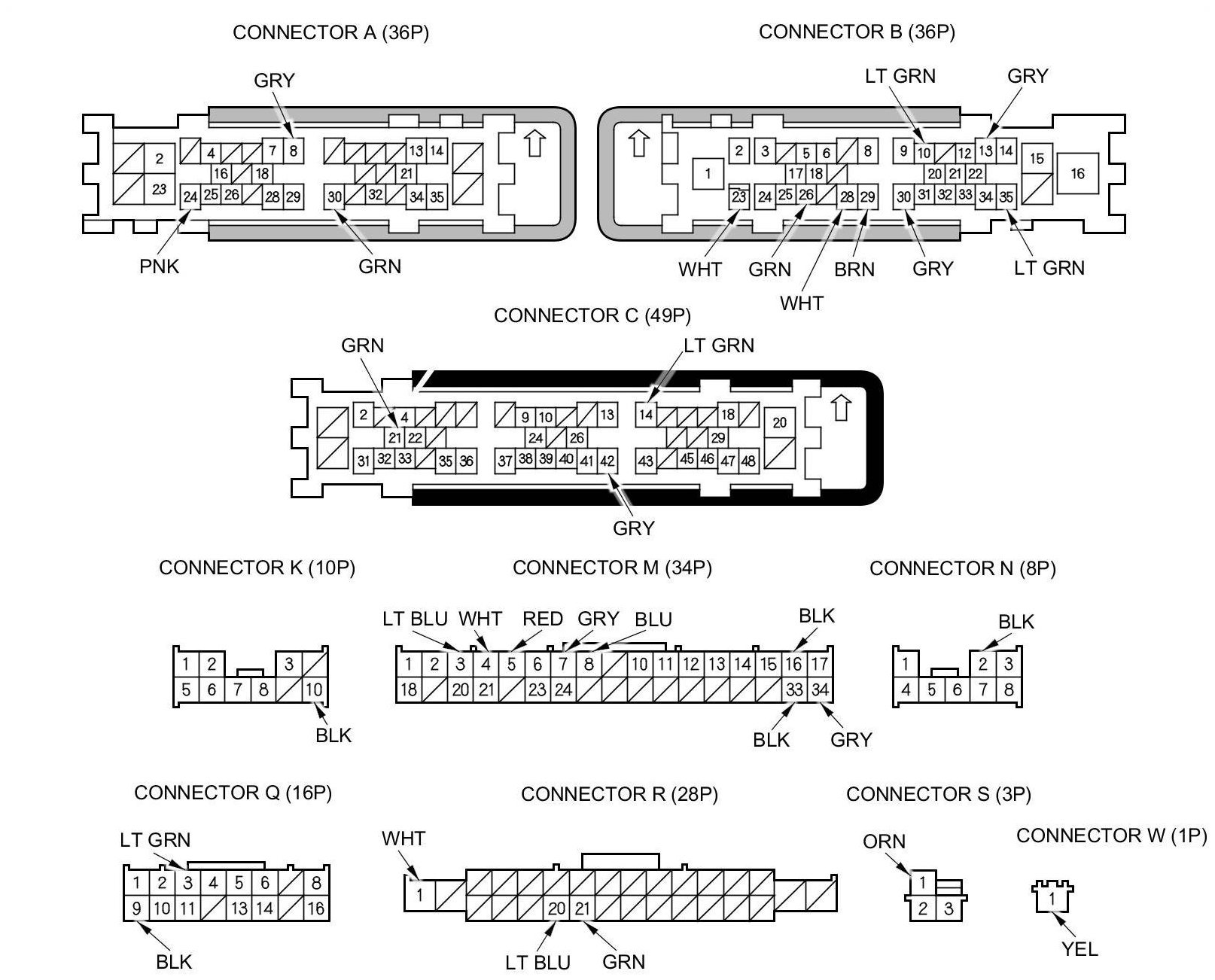

3. Disconnect under-dash fuse/relay box connectors A, B, C, K, M, N, Q, R, S, and W.

NOTE: All connector views are wire side of female terminals.





4. Inspect the connector and socket terminals to be sure they are all making good contact.

- If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.
- If the terminals look OK, go to step 5.

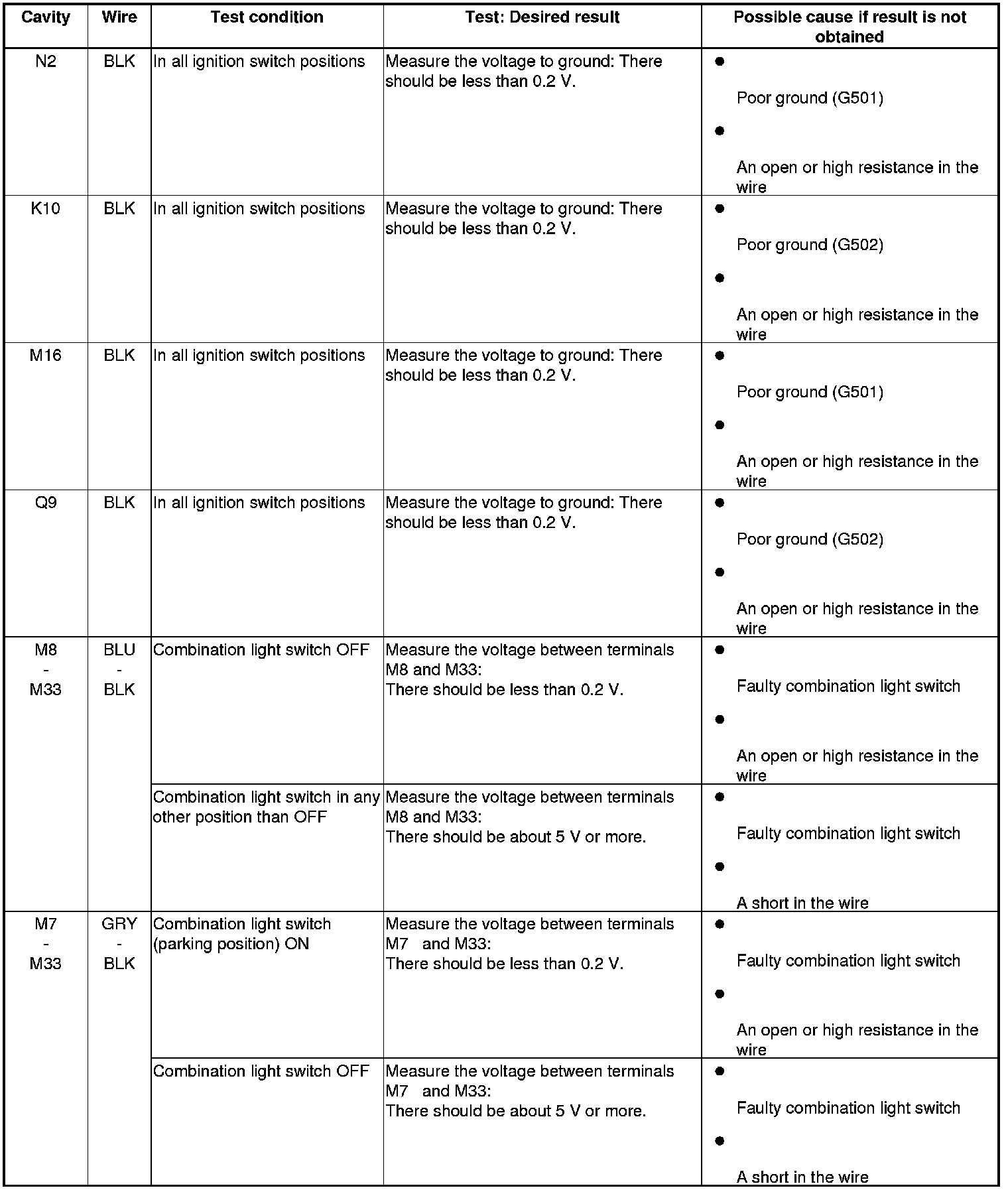

5. With the connectors still disconnected, do these input tests at the following connectors.

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 7.









6. Turn the ignition switch to LOCK (0).

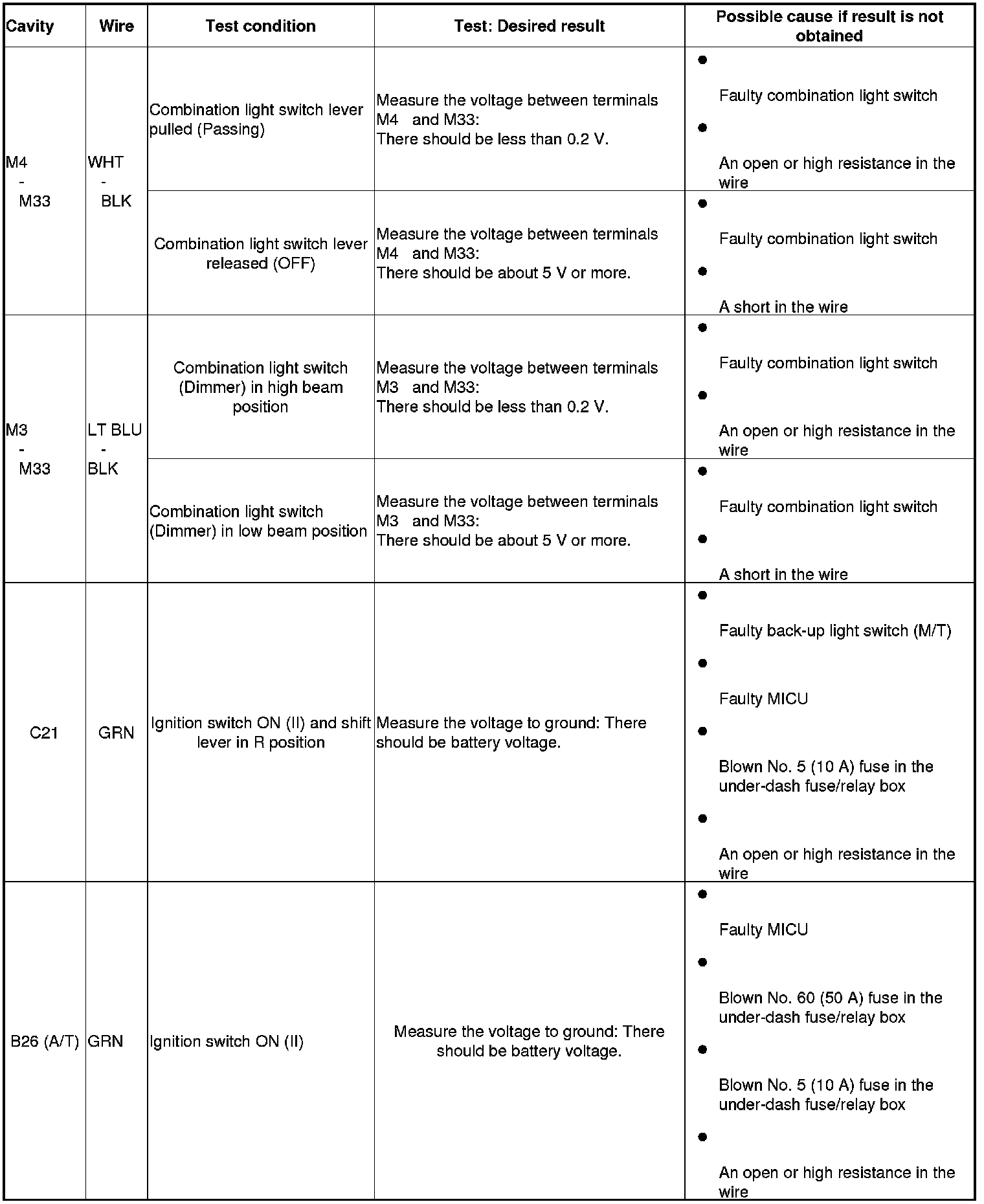

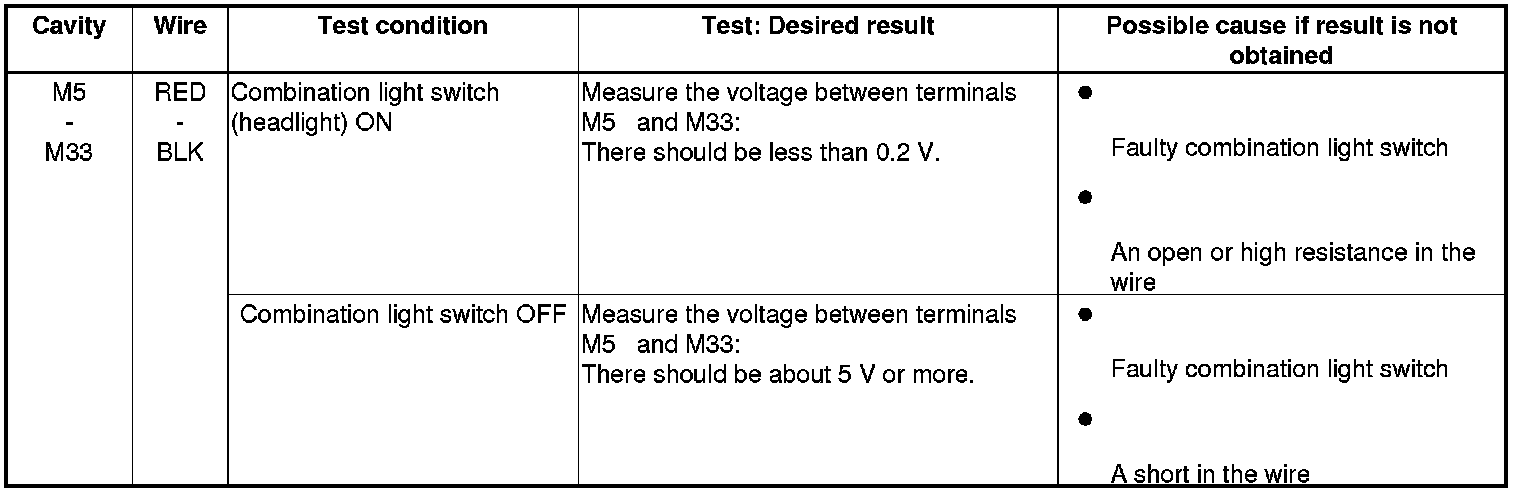

7. Reconnect the connectors to the under-dash fuse/relay box, and do these input tests at the following connectors.

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, the MICU must be faulty; replace the under-dash fuse/relay box Under-Dash Fuse/Relay Box Removal and Installation (USA Models).
