Torque Specifications

Torque Specifications

NOTE
*Refer to the service precautions data for the precautions and complete procedures.
*Refer to the repair data for the bolts/nuts not indicated here.
*1: Parts to be tightened in a particular order.
*2: Follow the repair data procedures closely for torque, sequence, and special steps.

Engine Electrical

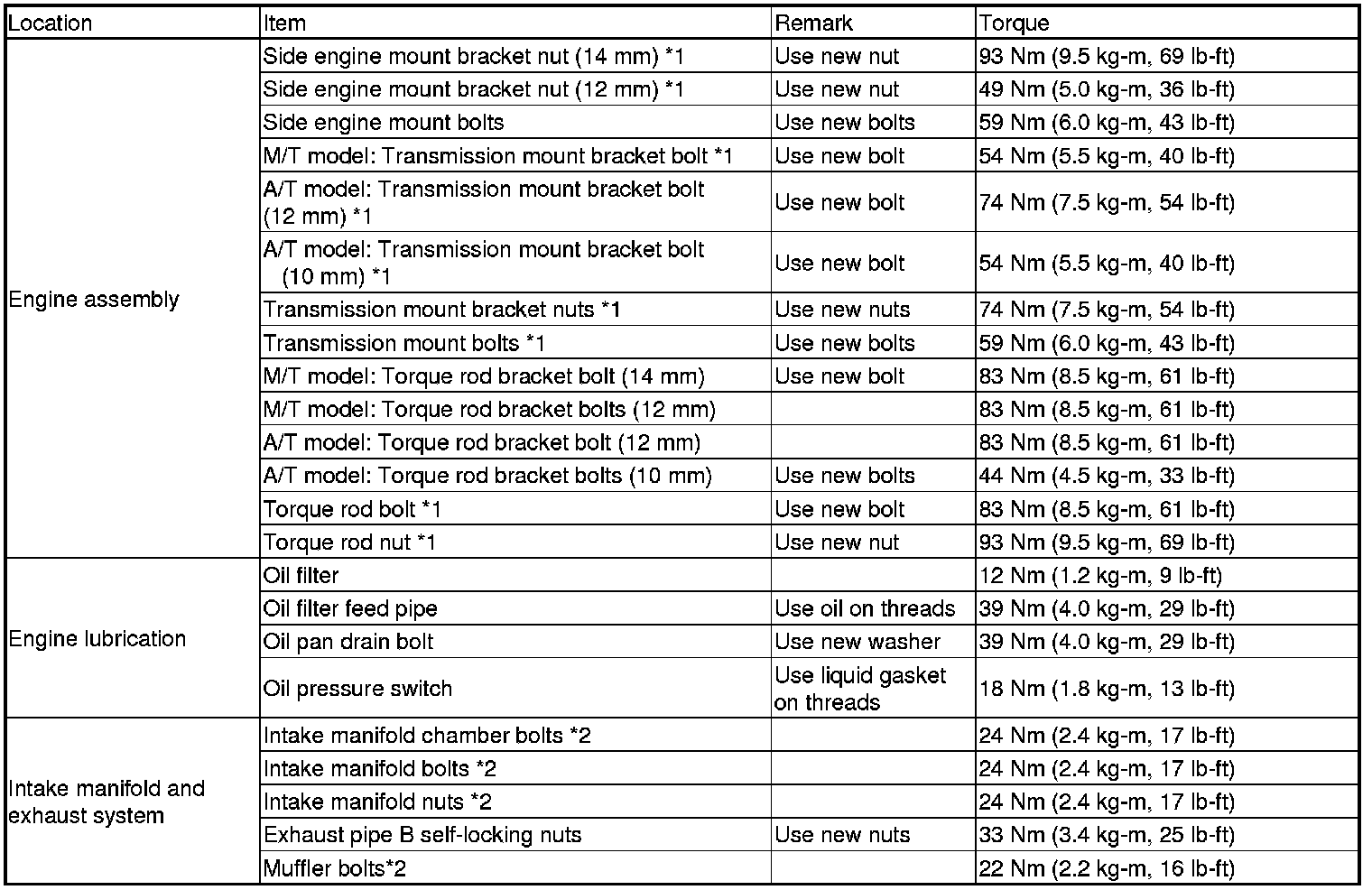

Engine Mechanical






Engine Cooling






Fuel Emissions






Clutch






Manual Transmission and M/T Differential






Automatic Transmission

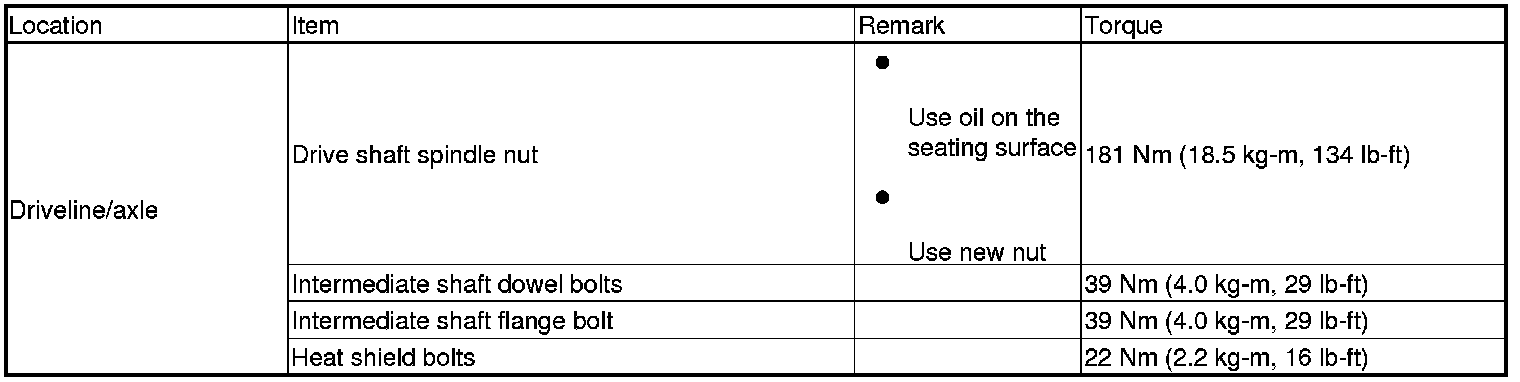

Driveline/Axle






Steering

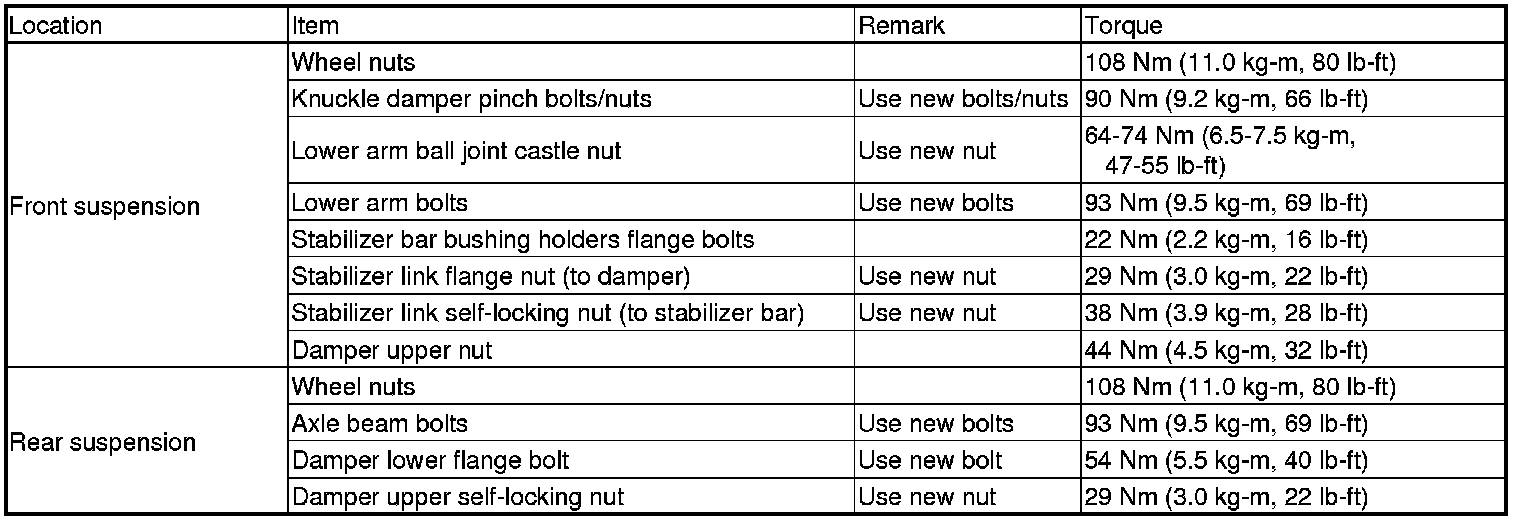

Suspension






Brakes






Body






Heating, Ventilation, and Air Conditioning






Body Electrical
