Navigation System - Controls, Set-Up, Testing
11-040December 8, 2012
Applies To: 2012-13 Fit With Navigation System - ALL
2012-13 Fit: PDI of the Navigation System
(Supersedes 11-040, dated July 3, 2012, to revise the information marked by *)
*REVISION SUMMARY
Under NAVIGATION SYSTEM SETUP AT PDI, step 3 and the illustration were changed.*
INTRODUCTION
This bulletin provides information for the PDI (pre-delivery inspection) and testing of the navigation system. These topics are covered:
^ Navigation System Controls
^ Navigation System Setup at PDI
^ System Limitations
^ Map Coverage Areas
^ Hawaii System Setup
^ Ordering Navigation Update Software
For more information about the navigation system and its operation, refer to these resources:
^ Technology Reference Guide
^ Navigation Manual - Besides the one that comes with the vehicle, the navigation manual is also available online. Select Search by Vehicle, then enter keywords NAVIGATION MANUAL.
^ Online University - Use the keyword NAVI for more information about the navigation system.
WARRANTY CLAIM INFORMATION
None. These procedures are considered part of the normal PDI.
NAVIGATION SYSTEM CONTROLS

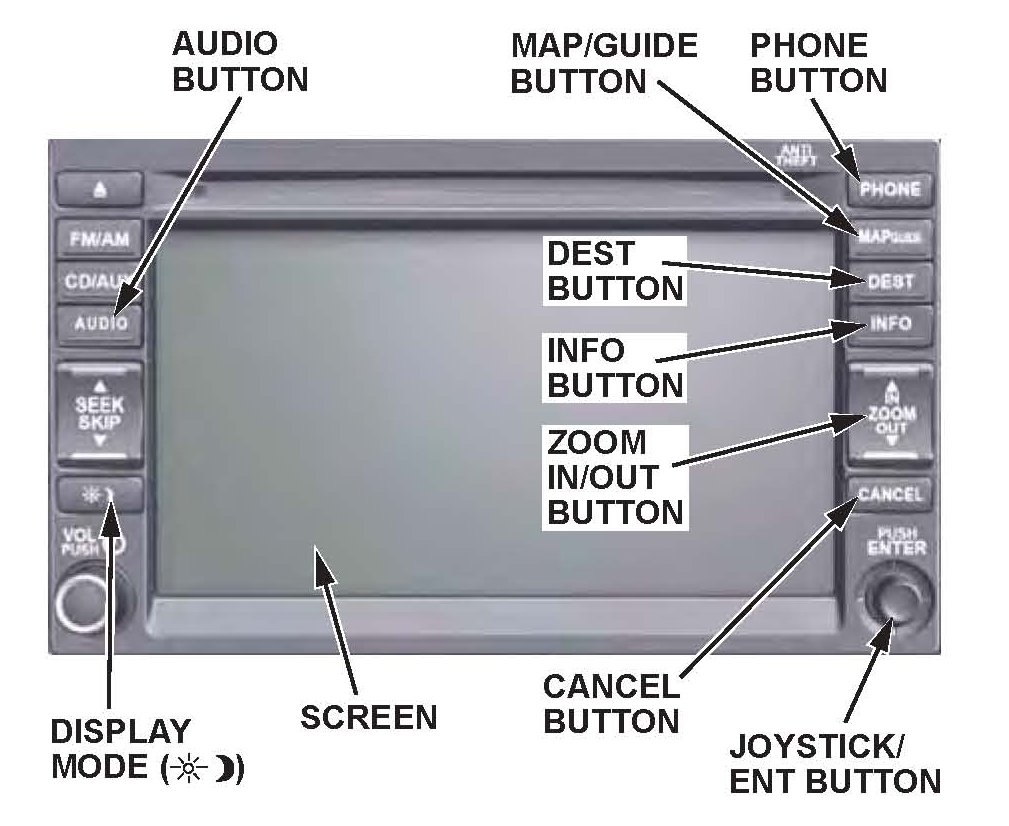

The buttons listed above are used in this bulletin. For more information on the button functions, see System Controls in the Navigation Manual.

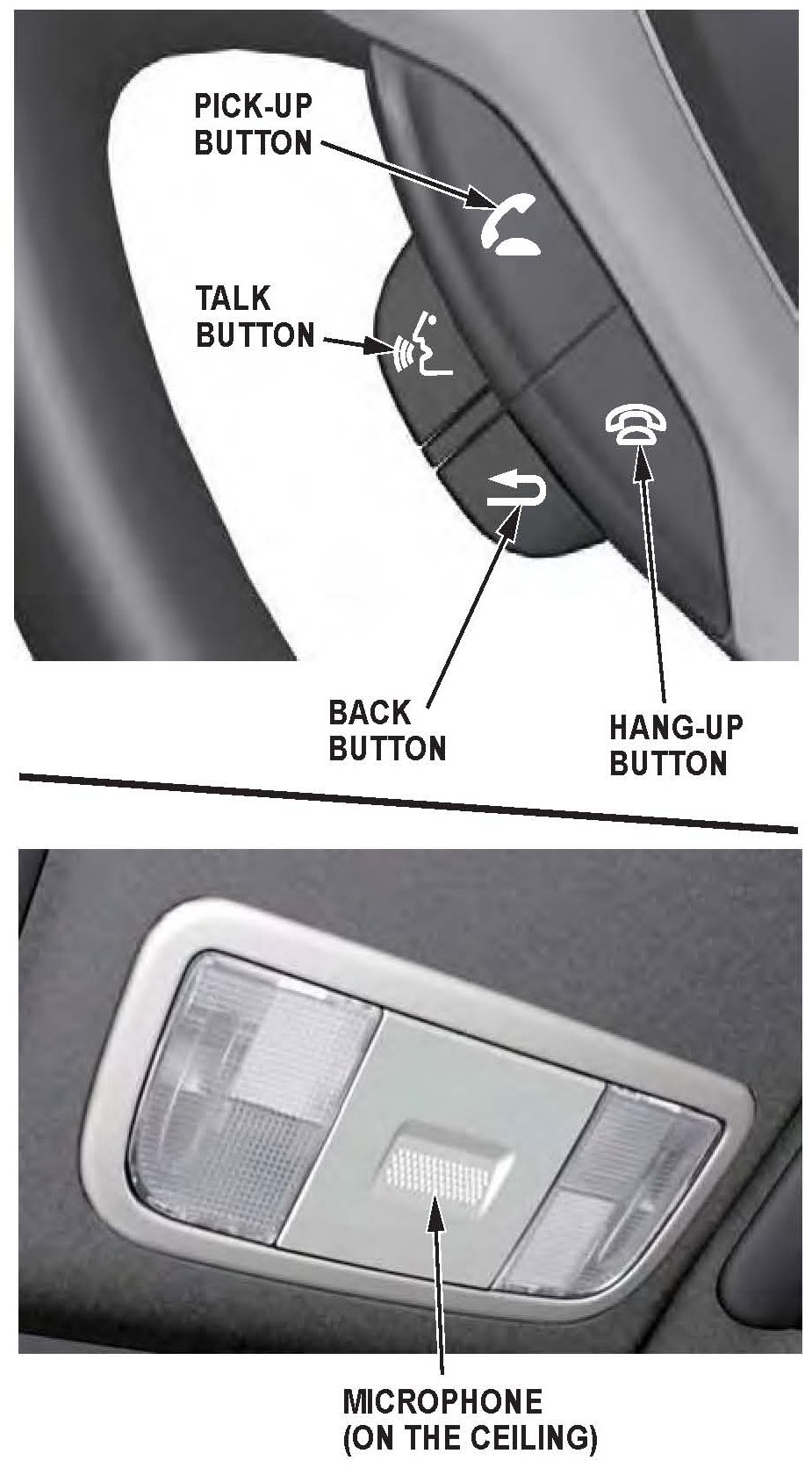

Voice Control System.
The navigation system features a voice control system that allows you to operate most of the navigation and audio controls with only your voice. To interact with the navigation system, use the TALK and HANG-UP/BACK buttons. The microphone is located on the ceiling. This is the primary way to give commands to the system.
TALK button - Press and release this button to activate the voice control system. After pressing and releasing TALK, wait for the beep, then speak your command.
NOTE:
When the voice tutorial is turned on, you need to push the TALK button twice to speak a command.
HANG-UP/BACK button - Press this button to return to the previous display. After the previous display appears, the system prompts you for a command and sounds a beep. Press the TALK button to say your next command. The HANG-UP/BACK button has the same functions as the CANCEL button on the navigation system panel.
Microphone - Receives voice commands.
Improving Recognition
If the system does not understand your voice commands, refer to Improving Voice Recognition in the navigation manual.
NOTE:
^ You must be in the driver's seat to use voice commands with the navigation system.
^ Close the windows, and make sure the vents are pointed away from the microphone.
^ Set the fan speed to low (1 or 2) or off.
^ If you speak a command with something in your mouth, with a heavy accent, or in a high-pitched voice, the system may misinterpret your voice command.
NAVIGATION SYSTEM SETUP AT PDI
NOTE:
^ The Fit navigation system uses a flash memory drive instead of a DVD or HDD (hard disc drive).
^ The Fit navigation system is equipped with features to reduce driver distraction. Some touch screen menus are limited or unavailable (grayed out) while the vehicle is being driven to encourage drivers to use voice commands to operate the navigation and HFL systems.
Since the navigation system interfaces with other vehicle systems, it is important that all of the systems are initialized. To initialize the navigation system, follow these steps:
1. Do the normal PDI of the vehicle.
2. You may see the factory In-Line Diagnosis screen below. If so, do the following. If not, go to step 3.
^ Press the TALK, the PICK-UP, and the HANGUP/BACK buttons, then wait for all the boxes to turn green. If any of the boxes are red, troubleshoot the applicable system. Refer to the online service manual for more information.
^ Press the TALK button and in a normal voice, say "testing." The mic level indicator must reach at least 6 bars.
^ Press Exit Diag to exit the test.
^ Turn the ignition switch to LOCK (0), then back ON (II) to make sure the In-Line Diagnosis screen does not appear. If it does, refer to the online service manual using keywords NAVI DIAG. Select Navigation System Diagnostic Mode from the list, then scroll down to Factory Diagnostic Screen In Line Diag.
*
3. Start the engine, and drive the vehicle outside away from buildings, tall trees, and power lines. If needed, enter the 5-digit security code for the navigation system.
NOTE:
There are two code labels and a plastic code card located in a small plastic bag in the glove box.
^ Attach one of the labels to the code card, put it in the plastic bag, and return it to the glove box.
^ Attach the other label to the PDI repair order or put it in the plastic bag, and return it to the glove box for the customer.
NOTE:
Never attach a label to the side of the glove box or the other location where both the serial number and code are easily visible. This defeats the purpose of the ant-theft protection.
If the code card is lost or unavailable, you can get the code from the iN using the navigation system serial number. The system serial number can easily be obtained without removing the navigation unit.
To get the serial number and code, do this:
^ Press and hold the MAP/GUIDE, DEST and CANCEL buttons at the same time.
^ At the Select Diagnosis Items screen, select Detail Information & Settings, Select Unit Check, then Navi ECU. The navigation unit serial number is displayed toward the bottom of the screen.
^ Use the navigation Anti-theft code inquiry option on the iN to look up the 5-digit navigation anti- theft code.
^ If the code does not work, call the American Honda Warranty department at 310-783-3240.*
4. The instructions below appear on the screen to indicate that the system is initializing (determining its location from the GPS satellites). Follow the on-screen instructions.
NOTE:
The average initialization takes about 10 minutes, but it can take as long as 45 minutes. If initialization is complete within 10 minutes, the display changes to the globe screen.
5. If the system does not initialize within 10 minutes, the screen (shown below) appears. The system is still initializing but does not automatically exit to the screen above when initialization is complete. Do not immediately follow the instructions on the screen. After 30 minutes, try restarting the vehicle to see if the navigation system completed the initialization. If not, follow the instructions on the screen.
NOTE:
The initialization screen may appear after battery voltage to the navigation unit has been disconnected for more than 5 minutes. If this happens, follow the on-screen instructions. If you are still unable to obtain GPS initialization, refer to the online service manual and use keyword GPS for diagnostic information.

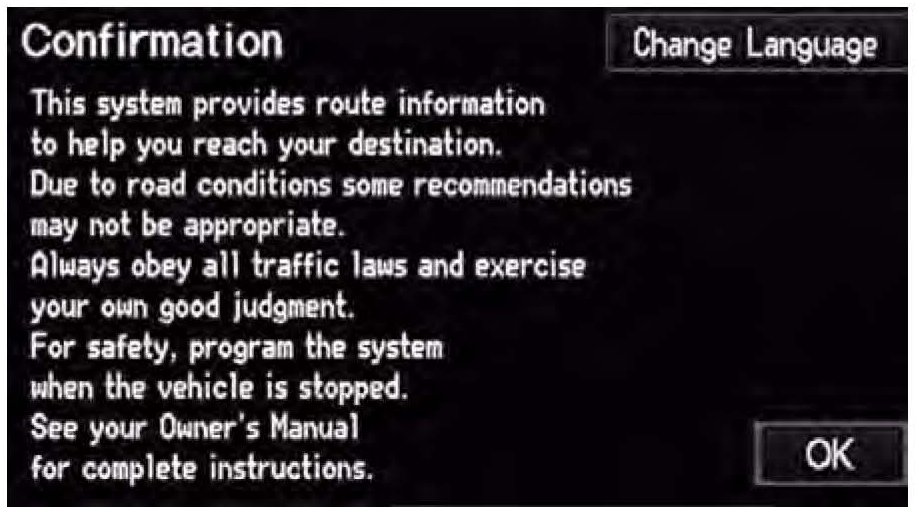

6. When initialization is complete, the disclaimer screen appears. Touch OK.
NOTE:
Do not enter a destination yet. For the navigation system to calculate a route, it must align the current location to a mapped road (map matching). This happens when you start driving.
7. Drive the vehicle at least a half-mile from your dealership, then find a safe place to park. Set the map scale at 1/20.
^ Make sure the VP (vehicle position) icon moves smoothly as you drive and does not jerk from one point to another. Also make sure the icon points in the direction the vehicle is traveling; it should not "dog track" or spin.
^ After driving a few hundred feet, the name of the road you are driving on should appear on the bottom of the screen.
NOTE:
If the navigation system fails to map-match after the vehicle is driven for more than a couple of miles on a displayed road, refer to the service manual symptom troubleshooting.
8. With the map screen displayed, press and release the TALK button.
NOTE:
When the voice tutorial is turned on, you need to push the TALK button twice to speak a command.
9. After you hear the beep, say Find the nearest Honda dealer." The system should display a list of Honda dealers.
10. Use the joystick to select your dealership by highlighting it, then pushing in on the joystick.
11. On the Calculate Route to screen, select Set as Dest. The system then calculates a route and displays it as a blue line. If you are in a rural area with unverified roads, you may see a blue vector line or a blue/pink dotted line pointing in the direction of your destination.
12. Follow the voice guidance back to your dealership. The voice guidance should work even with the audio system turned off.
13. Make sure the time shown by the system is correct; the system gets it from the GPS satellites. For areas that do not follow daylight saving time, you may have to adjust the time settings. Select INFO, Setup, Other, Clock Adjustment, then Clock Adjustment again, and set Auto Daylight to OFF.
NOTE:
If your dealership is located near a time zone boundary, set Auto Time Zone to OFF. The clock then keeps the home" time if the customer routinely drives across the time zone boundary.
14. Turn the headlights on and off to verify that the display dims with the headlights on. If not, make sure the dash brightness level is set to the midpoint with the headlights turned ON, and recheck.
15. Press the DISPLAY MODE button to verify that the display changes between the Day, Night, and OFF modes.
16. Press the INFO, then Setup button, or use the
voice control system and say "Info," then "Setup."
Then verify these settings:
^ Volume is set to midrange.
^ Brightness is set so the display can be seen in bright sunlight.
17. In Setup, select Personal Information, then Previous Destinations. To delete previous destinations, highlight all the locations except your dealership, then select OK.
18. Return to the main setup menu. If needed, clean the screen with a soft, damp cloth. You may use a mild cleaner intended for eyeglasses or computer screens. Harsher chemicals may damage the screen.
NOTE:
Do not use shop towels, paper towels, or tissues; they can scratch or damage the screen.
SYSTEM LIMITATIONS
These issues could arise during the PDI or after installing replacement parts to repair the system. Refer to the navigation manual or the technology reference guide for basic operation.
If you think you found any problems with the navigation system during the PDI or after installing replacement parts to repair the system, refer to System Limitations and Database in the navigation manual. This helps you to avoid replacing parts when the issue may be a system characteristic.
To minimize distractions while driving, always use the voice control system to operate the navigation system. Always verify the audio and visual route information by carefully observing roadway signs, signals, etc. Use your own good judgment, and obey traffic laws while driving.
The navigation system has these limitations:
The GPS (Global Positioning System) satellites used by the navigation system are operated by the U.S. Department of Defense. For security reasons, certain inaccuracies are built into the GPS. This can cause occasional positioning errors of up to several hundred feet. If the navigation system indicates your position incorrectly, wait several seconds until it corrects itself. The system may also correct itself after you make a turn or cross a road.
^ The routes calculated by the system may not always be what you consider the most direct ones. Try different routing methods to obtain the best route. Even the direction your vehicle faces influences the route calculation.
^ Since businesses close or relocate, some information may be inaccurate. Also, route guidance may conflict with actual road conditions, such as street closures, construction, and detours.
^ The GPS antenna receives location information from orbiting satellites. Anything that blocks or interferes with the signal affects accuracy. The GPS signal can be blocked or interfered with (vehicle position shown incorrectly on the map) by:
- Aftermarket metallic window tinting above or to the sides of the GPS antenna.
- Aftermarket vehicle tracking systems mounted near the navigation unit or the display.
- Radar detectors, cell phones, or other aftermarket electronic accessories (including other GPS units) placed near the navigation unit or the display.
- Outside electrical interference from overhead power lines, trolley lines, or broadcast sources.
- Tall trees or buildings near or over the vehicle. They can cause the system to show the vehicle on an adjacent street. This should automatically correct itself when the obstruction is gone.
^ In some cases, a city name, road name, or address may be incorrect or missing from the system. These are the possible causes:
- The city name may be listed under a larger metropolitan area or as an unincorporated area. Try selecting the street name first. If it is a smaller city in a rural area, only the main road may be shown.
- If the street name cannot be found, is shown incorrectly on the map, or is not drawn correctly, it may be because it is a new road or it is in an unverified area.
NOTE:
See the navigation manual for more information.
^ If the location of your dealership is shown incorrectly or needs to be changed, report it to your DPSM.
MAP COVERAGE AREAS
The map database covers the United States, Puerto Rico, and Canada. The map coverage for the U.S. contains accurately mapped (verified) metropolitan areas and less accurate (unverified) rural coverage. In Canada, the database covers major metropolitan areas and major roads connecting those metropolitan areas. For more coverage information, go to www.hondanavi.com.
Detailed Coverage and Non-Detailed Coverage
Many cities and metropolitan areas are fully mapped with detailed coverage while rural areas typically have less accurate, incomplete, or non-verified information. Refer to the Map Screen Legend in the navigation manual for more information.
For a list of current detailed coverage areas by country and state/province, refer to the navigation manual or go online to www.hondanavi.com. Online, use the pull-down menu to select the Model and the Year, select Map Coverage, then select Map Coverage Details.
HAWAII SYSTEM SETUP
The navigation system comes with map information for the entire United States, including Hawaii. Contrary to previous models, a customer does not need to change the navigation settings when relocating to or from Hawaii.
ORDERING NAVIGATION UPDATE SOFTWARE
Navigation map updates can be ordered online at Under Find Updates, use the pull-down menu to select the vehicle Model and Year. You can also call the Honda Navigation Center at 888-2914675. Both methods require a major credit card.
