Navigation System Description

Navigation System Description

Overview

The navigation system is a highly sophisticated, hybrid locating system.

The audio-navigation unit uses global positioning system (GPS) satellite signals, internal yaw and vehicle speed inputs, and a map database to show where the vehicle is and to help guide you to a desired destination.

The audio-navigation unit's GPS receiver receives signals from the GPS, a network of 24 satellites in orbit around the earth. By receiving signals from several of these satellites, the navigation system can determine the latitude, longitude, and elevation of the vehicle. In addition, signals from the system's yaw rate sensor and the PCM (vehicle speed pulse) enable the system to keep track of the vehicle's direction and speed of travel.

Signals from the system's yaw rate sensor (inside the audio-navigation unit) detects turns, and the PCM vehicle speed pulse (VSP) and reverse signal enable the system to keep track of the vehicle's speed and direction of travel. The advantage of this hybrid system is that the system can track your position if either the GPS signal or the vehicle speed pulse is missing. For instance, when in a tunnel (no GPS), the speed signal is used to update your position on the map. Alternately, while the vehicle is being transported on a ferry, GPS signals can show the vehicle position on the map as it crosses the water.

The navigation system uses the location, direction, and speed information to display the appropriate map and calculate a route to the destination entered. As you drive to a destination, the system provides both visual and audio guidance. Audio guidance is sent to the audio unit, and an RGB graphics color signal is sent to the navigation display.

This navigation system also has voice recognition that allows voice control of most of the navigation, and audio functions. The voice control switches (navigation TALK and BACK buttons on the steering wheel) activate the voice control system. The microphone on the ceiling receives your voice commands. For more information on this feature, consult the navigation owner's guide.

The illumination signal is used by the audio-navigation unit to automatically switch the display mode between the Night and Day display modes. When the headlights are on, and the dash brightness control setting is set to full bright, it overrides the Night display mode, and allows a daytime navigation display with the lights on.

When the navigation system is giving voice guidance commands, the front speakers are muted. When the voice control system is being used (navigation TALK button pressed), all of the speakers are muted.

The internal GA-Net II bus passes information back and forth between the audio-navigation unit, the HandsFreeLink control unit, and the audio system components. The information passed on this bus are touch button commands, audio muting signal, audio (radio and USB audio), and any opens or shorts in these bus lines can affect the navigation system or other audio accessory operation.

The clock on the navigation display is set and maintained internally by the audio-navigation unit. The time is automatically adjusted for daylight savings, and time zone changes while driving. The time and daylight savings time can be adjusted in setup.

Additional information is available about the navigation components following the System Diagram. A glossary of terms that are used throughout this section follows the detailed information.

The Navigation System Manual in the glove box or on-line at any official Honda service website covers all of the system functions and settings. Use this as a resource when evaluating a customer concern.

System Diagram

Navigation Function

The navigation system is composed of the audio-navigation unit, the PCM (vehicle speed pulse), the GPS antenna, HFL-navigation microphone, the HFL-navigation voice control switch, the HandsFreeLink control unit, the FM distributor, the rearview camera, and the USB port.

These units communicate with each other on the GA-Net bus.

Function Diagram

Vehicle Speed Pulse

The vehicle speed pulse is sent by the PCM. The PCM receives a signal from the countershaft speed sensor, then it processes the signal and transmits it to the audio-navigation unit and other systems.

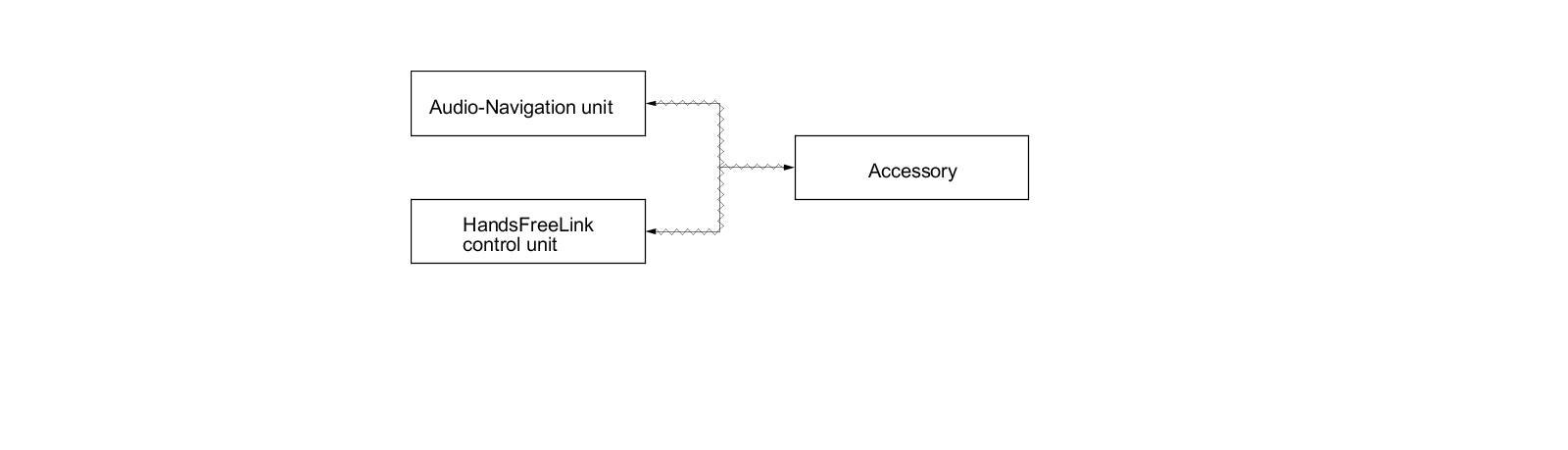

GA-Net Bus Configuration

The GA-Net bus passes audio and navigation commands throughout the navigation and audio components. These commands include navigation touch screen and hard button signals. Because the entire bus is daisy chained between components (see diagram), any open or short in the GA-Net bus harness will cause any or all of these functions to become inoperative. The addition of any factory audio accessory must maintain the continuity of the GA-Net bus by installing the Y cable included with the accessory kit.

Yaw Rate Sensor

The yaw rate sensor (located in the audio-navigation unit) detects the direction change (angular speed) of the vehicle. The sensor is an oscillation gyro built into the audio-navigation unit.

Sensor Element Structure

The sensor element is shaped like a tuning fork, and it consists of the piezoelectric parts, the metal block, and the support pin. There are four piezoelectric parts: one to drive the oscillators, one to monitor and maintain the oscillation at a regular frequency, and two to detect angular velocity. The two oscillators, which have a 90-degree twist in the center, are connected at the bottom by the metal block and supported by the support pin. A detection piezoelectric part is attached to the top of each oscillator. The driving piezoelectric part is attached to the bottom of one oscillator, and the monitoring piezoelectric part is attached to the bottom of the other oscillator.

Oscillation Gyro Principles

The piezoelectric parts have electric/mechanical transfer characteristics. They bend vertically when voltage is applied to both sides of the parts, and voltage is generated between both sides of the piezoelectric parts when they are bent by an external force. The oscillation gyro functions by utilizing this characteristic of the piezoelectric parts and Coriolis force. (Coriolis force deflects moving objects as a result of the earth's rotation.) In the oscillation gyro, this force moves the sensor element when angular velocity is applied.

Operation

- The driving piezoelectric part oscillates the oscillator by repeatedly bending and returning when an AC voltage of 6 kHz is applied to the part. The monitoring-side oscillator resonates because it is connected to the driving-side oscillator by the metal block.

- The monitoring piezoelectric part bends in proportion to the oscillation and outputs voltage (the monitor signal). The audio-navigation unit control circuit controls the drive signal to stabilize the monitor signal.

- When the vehicle is stopped, the detecting piezoelectric parts oscillate right and left with the oscillators, but no signal is output because the parts are not bent (no angular force).

- When the vehicle turns to the right, the sensor element moves in a circular motion with the right oscillator bending forward and the left oscillator bending backward. The amount of forward/rearward bend varies according to the angular velocity of the vehicle.

5. The detecting piezoelectric parts output voltage (the yaw rate signal) according to the amount of bend. The amount of vehicle direction change is determined by measuring this voltage.

Global Positioning System (GPS)

The global positioning system (GPS) enables the navigation system to determine the current position of the vehicle by using the signals transmitted from the satellites in orbit around the earth. The satellites transmit the satellite identification signal, orbit information, transmission time signal, and other information. When the GPS receiver receives a signal from four or more satellites simultaneously, it calculates the current position of the vehicle based on the distance to each satellite and the satellite's position in its respective orbit.

Position Detection Image with GPS Satellite

Precision of GPS

The precision of the GPS varies according to the number of satellites from which signals are received and the view of the sky. The accuracy is indicated by the color of the GPS icon shown on the display.

GPS Antenna

The GPS antenna amplifies and transmits the signals received from the satellites to the GPS receiver.

GPS Receiver and Clock

The GPS receiver is built into the audio-navigation unit. It calculates the vehicle position by receiving the signal from the GPS antenna. The current time vehicle position and signal reception condition is transmitted from the GPS receiver to the audio-navigation unit to adjust vehicle position.

Radio Data System-Traffic Message Channel (RDS-TMC)

The Radio Data System-Traffic Message Channel (RDS-TMC) is a broadcast for delivering traffic and travel information to the driver. The RDS-TMC data is typically coded using the 57 kHz±3 kHz subcarrier on FM broadcast.

The RDS-TMC system uses a decoder in the audio-navigation unit to decode the traffic information data. It is integrated directly into a navigation system.

The traffic information is displayed with the navigation route guidance. It is used to avoid traffic jam and accident (see navigation system owner's manual for more information).

Muting Signal Logic

The audio muting logic is orchestrated by the audio-navigation unit. The audio-navigation unit determines what audio source has priority to use the speakers.

The priority of the audio sources is as follows:

HandsFreeLink has the highest priority, followed by navigation, and finally the radio/CD player. The priority signal is passed by HandsFreeLink to the audio-navigation unit by dedicated mute wires. The navigation mute signal is passed to the stereo amplifier.

The audio-navigation unit temporarily disables the voice control buttons, but allows the guidance to be heard.

When the navigation system sends out a voice route guidance command, the rear speakers are muted, and the navigation voice is heard in the front speakers.

When the navigation voice control system and HandsFreeLink is in use, the rear speakers are muted, and the navigation voice prompts are heard from the front speakers.

Audio-Navigation Unit

The audio-navigation unit calculates the vehicle position and guides you to the destination. The unit performs map matching correction, GPS correction, and distance tuning. It also controls the menu functions and the SD module, and interprets voice commands. With control of all these items, the audio-navigation unit makes the navigation picture signal, then it transmits the signal to the navigation display and the audio driving instructions to the audio-navigation unit via the internal audio section.

Calculation of Vehicle Position

The audio-navigation unit calculates the vehicle position (the driving direction and the current position) by receiving the directional change signals from the yaw rate sensor and the travel distance signals from the PCMs vehicle speed pulse (VSP) signal.

Map Matching Tuning

The map matching tuning is accomplished by indicating the vehicle position on the roads on the map. The map data transmitted from the SD module is checked against the vehicle position data, and the vehicle position is indicated on the nearest road. Map matching tuning does not occur when the vehicle travels on a road not shown on the map, or when the vehicle position is far away from a road on the map.

GPS Tuning

The GPS tuning is accomplished by indicating the vehicle position as the GPS's vehicle position. The audio-navigation unit compares its calculated vehicle position data with the GPS vehicle position data. If there is large difference between the two, the indicated vehicle position is adjusted to the GPS vehicle position.

Distance Tuning

The distance tuning reduces the difference between the travel distance signal from the VSP and the distance data on the map. The audio-navigation unit compares its calculated vehicle position data with the GPS vehicle position data. The audio-navigation unit then decreases the tuning value when the vehicle position is always ahead of the GPS vehicle position, and it increases the tuning value when the vehicle position is always behind the GPS vehicle position.

Route Guidance

The audio-navigation unit can calculate different routes to a selected destination. You have five options:

- Direct Route - Calculate a route that is the most direct.
- Easy Route - Calculate a route that minimizes the number of turns needed.
- Minimize Freeways - Calculate a route that avoids freeway travel. If that is not possible, keep the amount of freeway travel to a minimum.
- Minimize Toll Roads - Calculate a route that avoids, or minimizes travel on toll roads.
- Maximize Freeways - Calculate a route that uses freeways as much as possible.

Audio Guidance

The audio-navigation unit transmits audio driving instructions before entering an intersection or passing a junction. The audio instructions come through the audio-navigation unit to the front speakers.

NOTE: The front speakers are muted whenever the navigation system is giving guidance commands, and all of the speakers are muted when the voice control system is being used.

SD module

The map data (including all scale rates) is stored in the SD module. The map data includes:

- Road distances, road widths, speed limits, traffic regulations, passing time at junction, distances to junctions, and the driving instructions for audio guidance.
- Latitude and longitude GPS.

Audio Unit (Built in the audio-navigation unit)

The audio unit receives the audio driving instructions from the audio-navigation unit, and transmits the instructions through the front speakers even when the audio system is in use.

Navigation Display

The navigation display uses liquid crystal display (LCD). The LCD is a 6.5-inch-diagonal, thin film transistor (TFT), stripe type. The color film and fluorescent light are laid out on the back of the liquid crystal film. The touch sensor on the front of the LCD consists of a touch sensitive resistive membrane with an infinite number of possible touch locations.

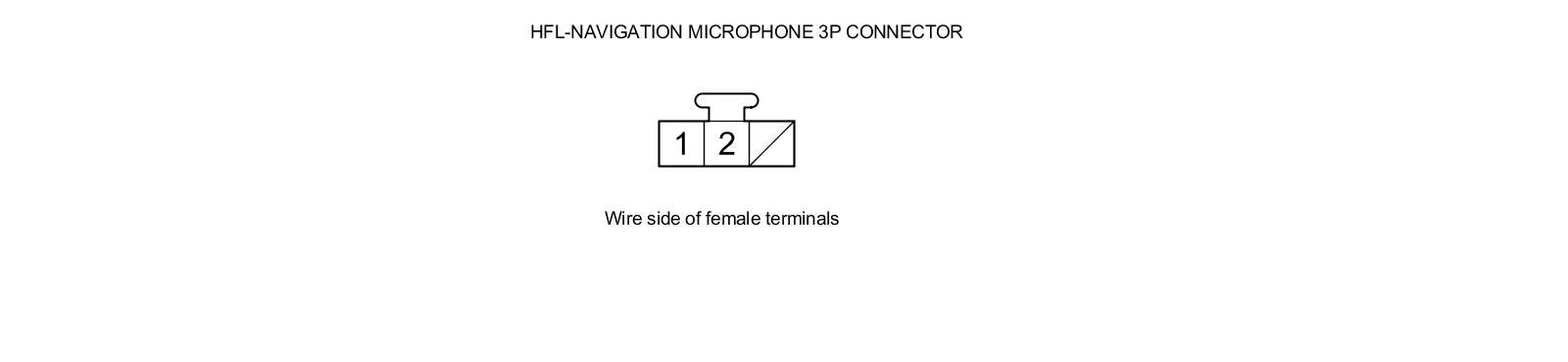

Microphone

The microphone (on the ceiling, in the individual map light) receives voice commands and transmits them to the audio-navigation unit for interpretation.

Navigation TALK Button

Activates the voice control system in the audio-navigation unit to accept voice commands.

Navigation BACK Button

Returns the display to the previous screen (similar function as the CANCEL button).

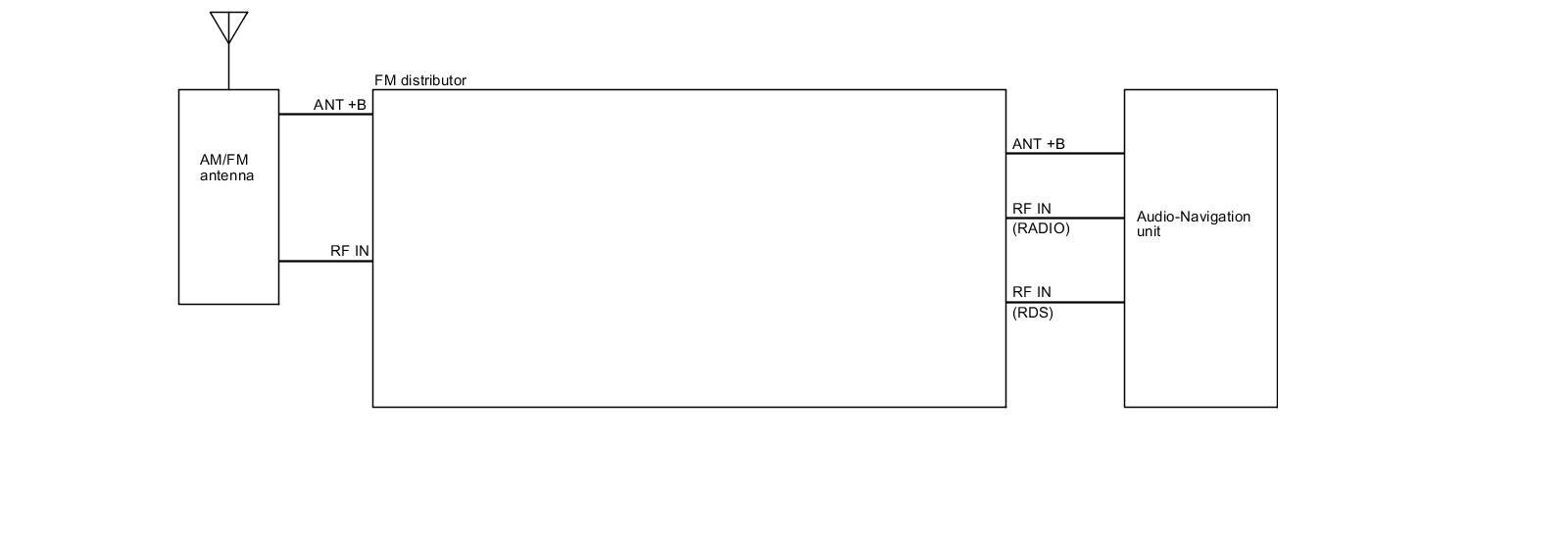

FM distributor

An FM distributor distributes the FM band radio signals received through an AM/FM antenna to the audio section and the navigation section in the audio-navigation unit.

Glossary

The following is a glossary of terms pertaining to the Voice Recognition Navigation System. All items may not apply to this vehicle. See the navigation system manual for more information.

Diagnostic System Diagram

This diagram shows all of the navigation diagnostic features available for system troubleshooting. The diagram starts at the center, and works outward in layers.

Access to the diagnostic features begins by starting the vehicle. This is necessary so the system can check the other systems connected by various busses. After starting the vehicle you can enter the diagnostic mode by pressing and holding the MENU, the DEST, and the CANCEL buttons.

The main menu screen allows 2 checking modes - one automatic, and one manual:

- The automatic diagnostic check starts when you select SELF DIAGNOSTIC MODE. The system runs for several seconds, and reports any issues with Red icons. Use the joystick or touch screen and select the icon you wish obtain the problem details.
- The manual diagnostic check is selected from the main menu by selecting DETAIL INFORMATION AND SETTING. The traditional diagnostic menu is displayed. This allows you to obtain additional details as instructed in the troubleshooting procedures.

NOTE: Do not clear or change settings unless specified by either the service information troubleshooting procedures or by the factory. Otherwise, you may accidentally delete customer information, or remove the latest flash software version installed by the factory.
