Power Mirror Actuator Test

Power Mirror Actuator Test

1. Remove the door panel Service and Repair.

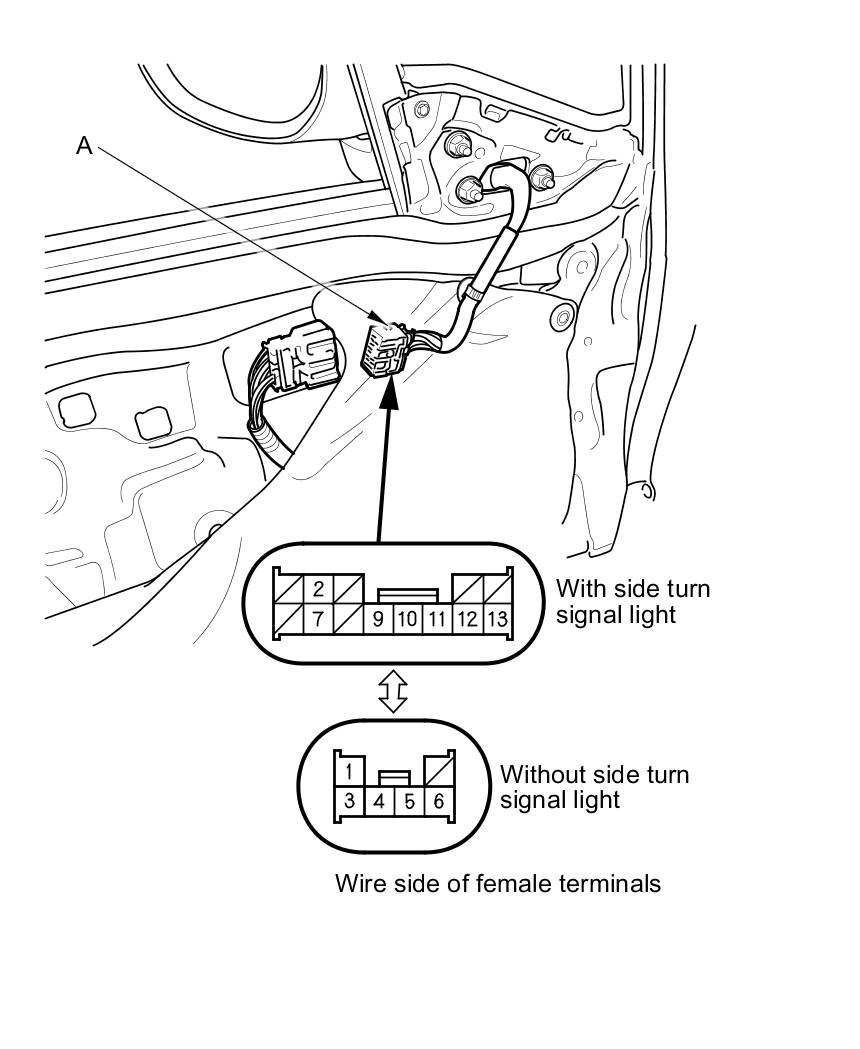

2. Disconnect the power mirror 13P (or 6P) connector (A).

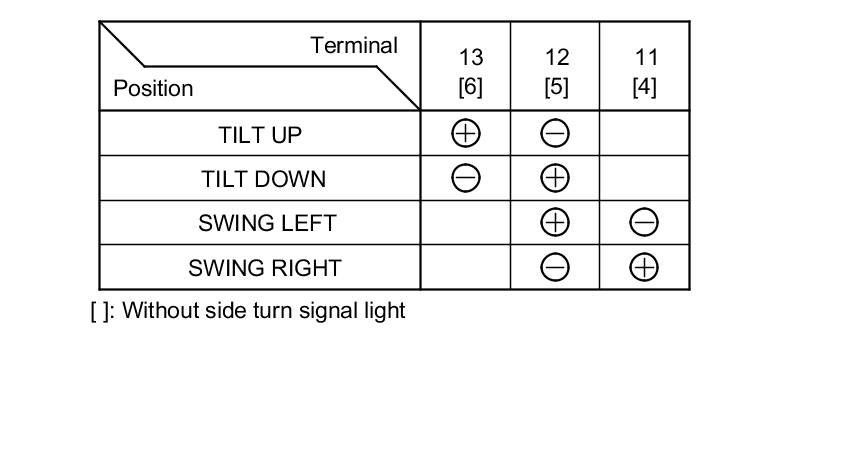

3. Check actuator operation by connecting power and ground according to the table.

Power Mirror Actuator





4. If the mirror fails to work properly, replace the power mirror actuator.
