Sound Proofing / Insulation: Locations

Undercoating Areas

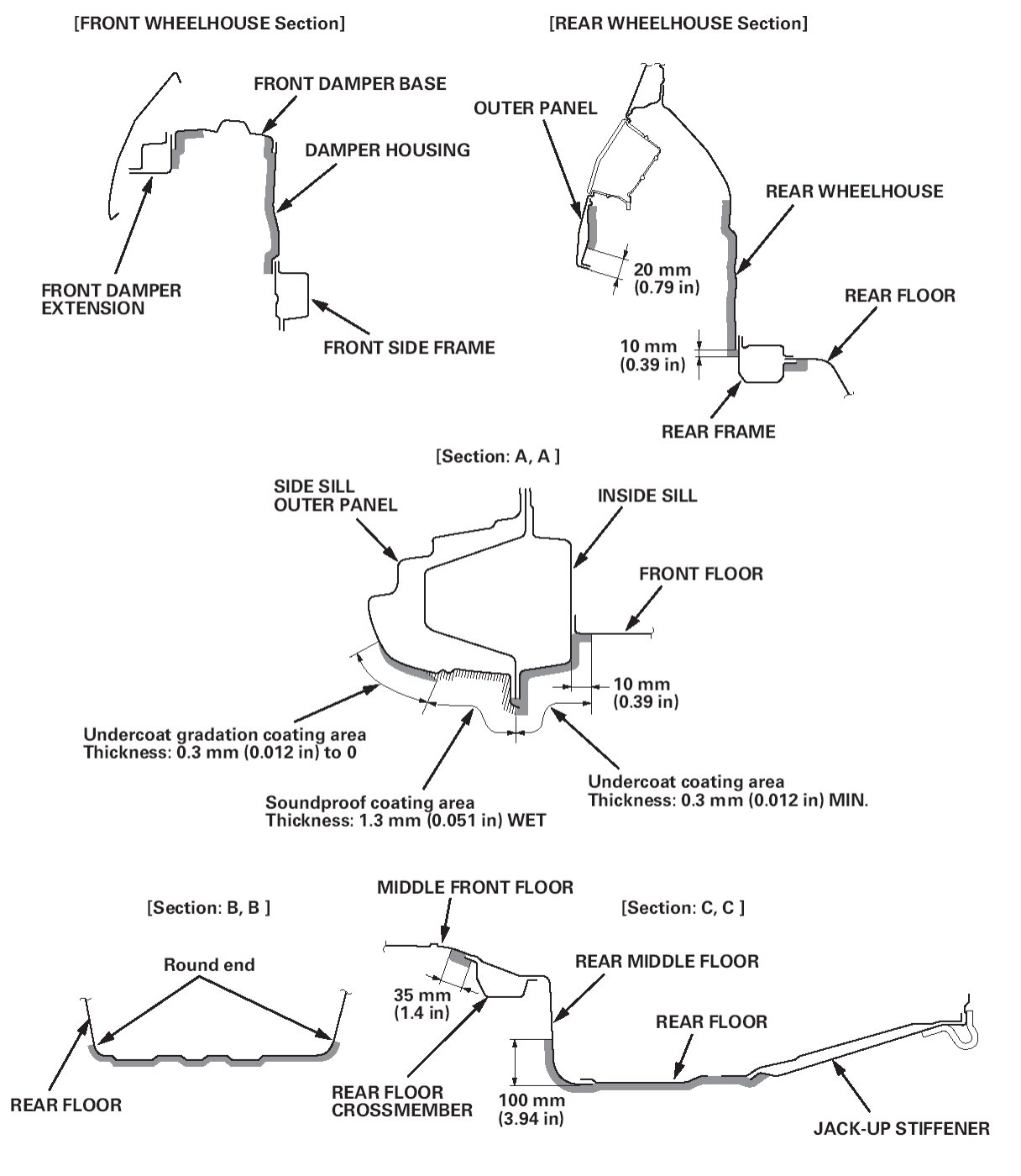

Apply undercoat to the areas shown.

NOTE:
- Coating thickness: 0.4 mm (0.016 in) MIN.
- Front wheelhouse, rear wheelhouse, and dashboard lower coating thickness 0.5 mm (0.02 in).
- Apply the undercoat 10 mm (0.39 in) from the edge of the welded flanges.
