Auxiliary Input / Output Jack, Entertainment System
>>

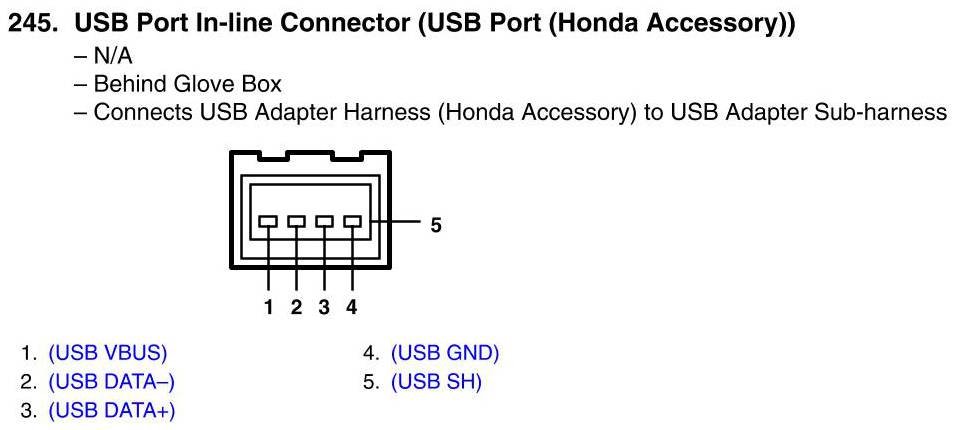

USB Port In-line Connector Connector View (USB Port (Honda Accessory))
USB Port In-line Connector Connector View (USB Port (Honda Accessory))
