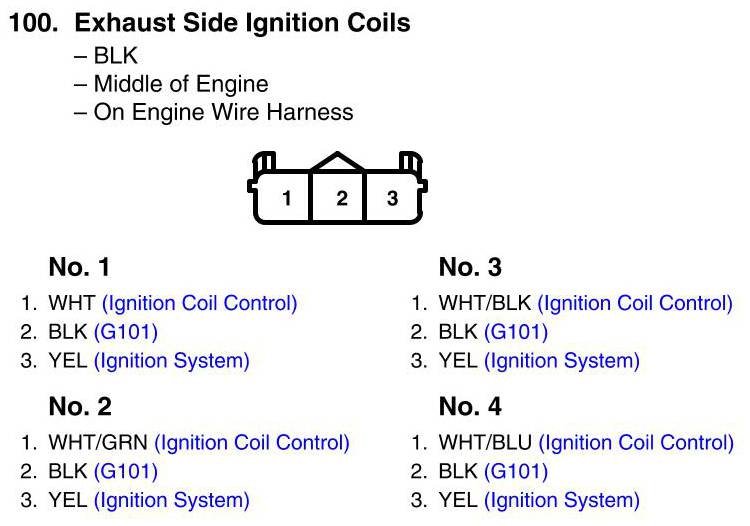

View 100 - Exhaust Side Ignition Coils Connector View
View 100 - Exhaust Side Ignition Coils Connector View
