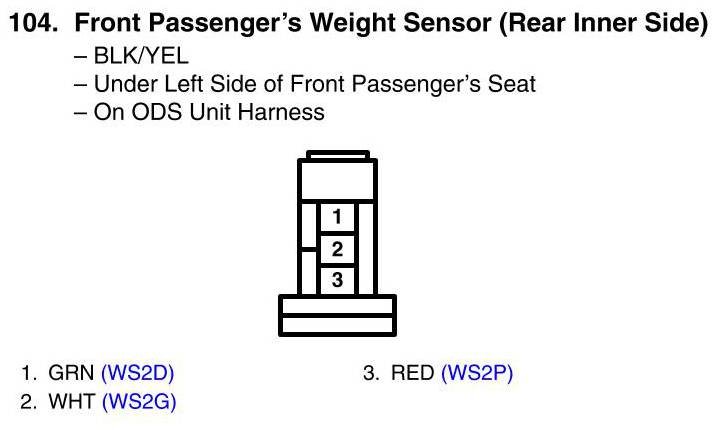

View 104 - Front Passenger's Weight Sensor (Rear Inner Side) Connector View
View 104 - Front Passenger's Weight Sensor (Rear Inner Side) Connector View
