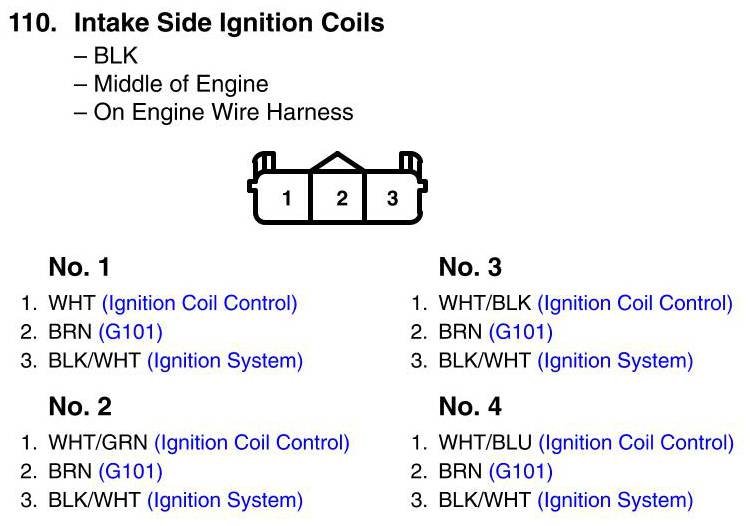

View 110 - Intake Side Ignition Coils Connector View
View 110 - Intake Side Ignition Coils Connector View
