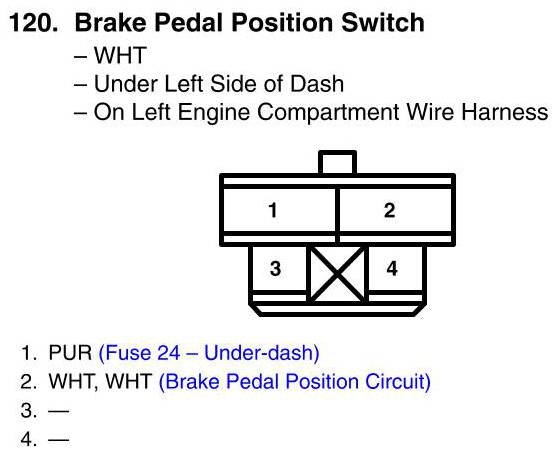

View 120 - Brake Pedal Position Switch Connector View
View 120 - Brake Pedal Position Switch Connector View
