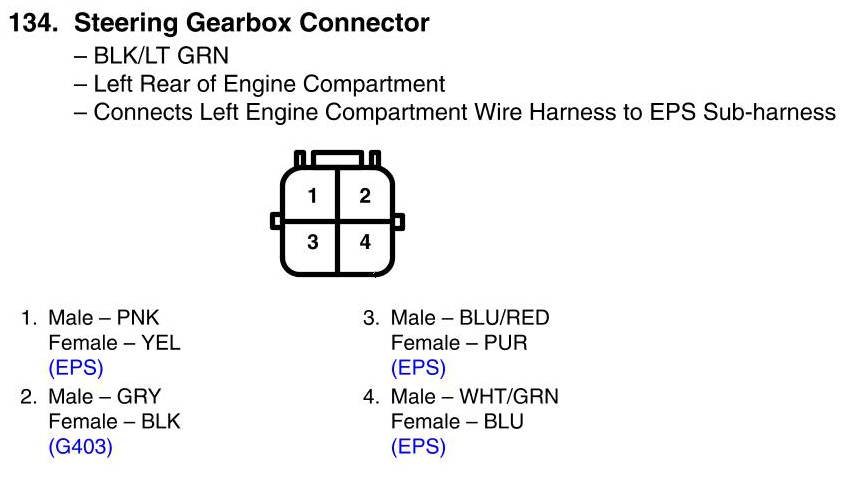

View 134 - Steering Gearbox Connector Connector View
View 134 - Steering Gearbox Connector Connector View
