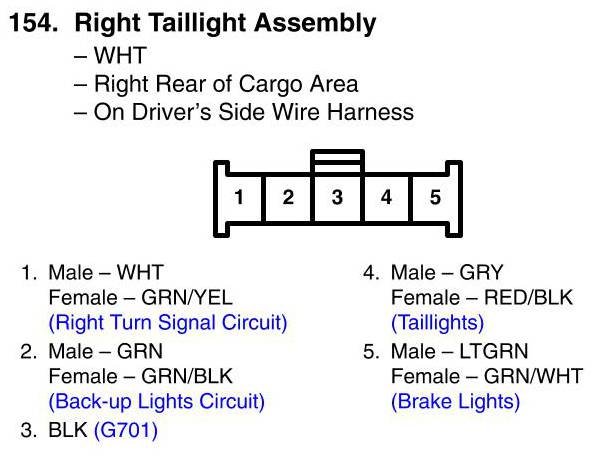

View 154 - Right Taillight Assembly Connector View
View 154 - Right Taillight Assembly Connector View
