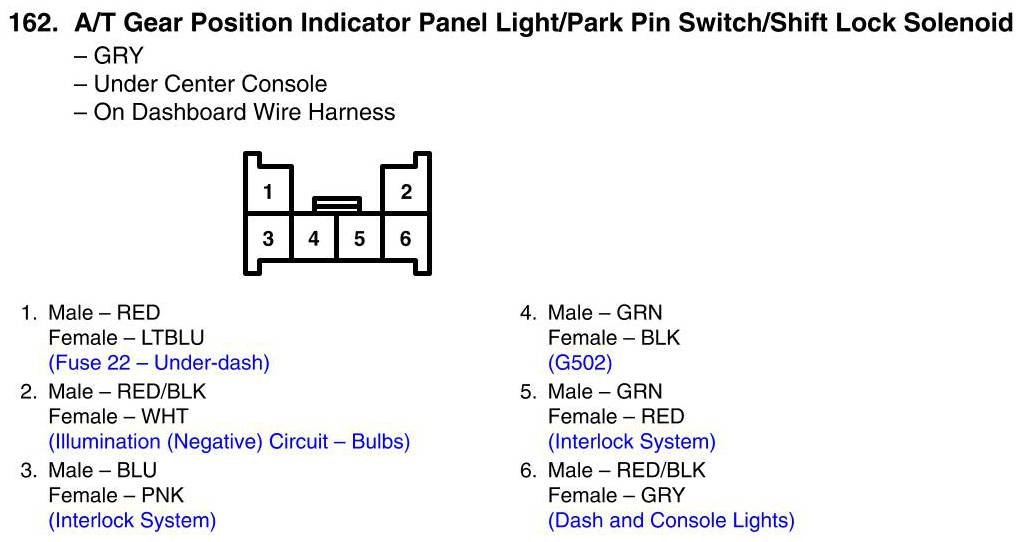

View 162 - A/T Gear Position Indicator Panel Light/Park Pin Switch/Shift Lock Solenoid Connector View
