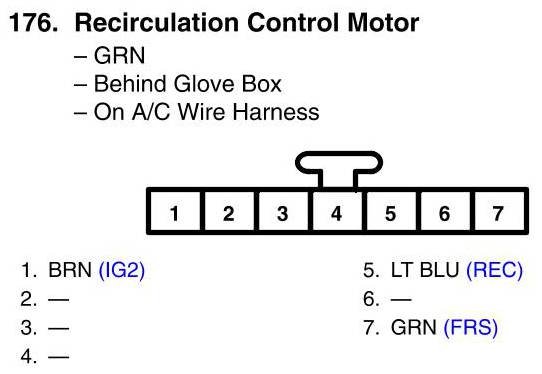

View 176 - Recirculation Control Motor Connector View
View 176 - Recirculation Control Motor Connector View
