Home >> Honda >> 2012 >> Insight L4-1.3L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 179 - Right Rear Power Window Switch Connector View

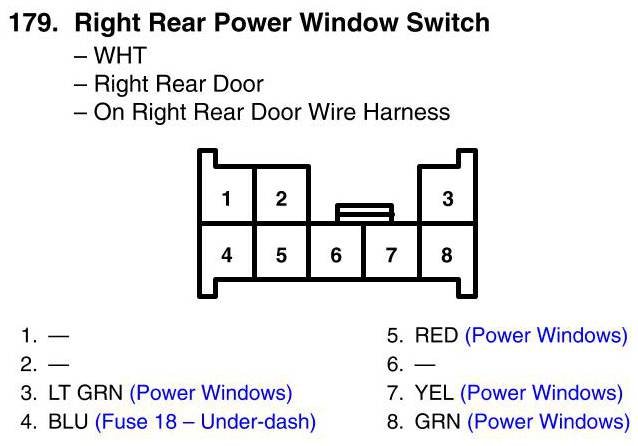

View 179 - Right Rear Power Window Switch Connector View
