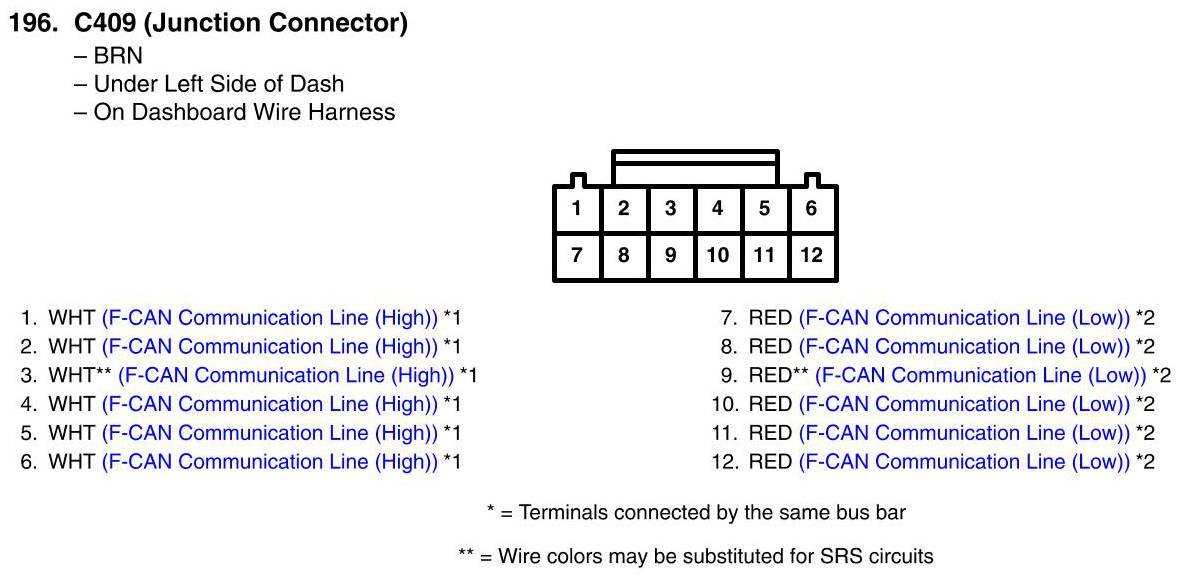

View 196 - C409 (Junction Connector) Connector View
View 196 - C409 (Junction Connector) Connector View
