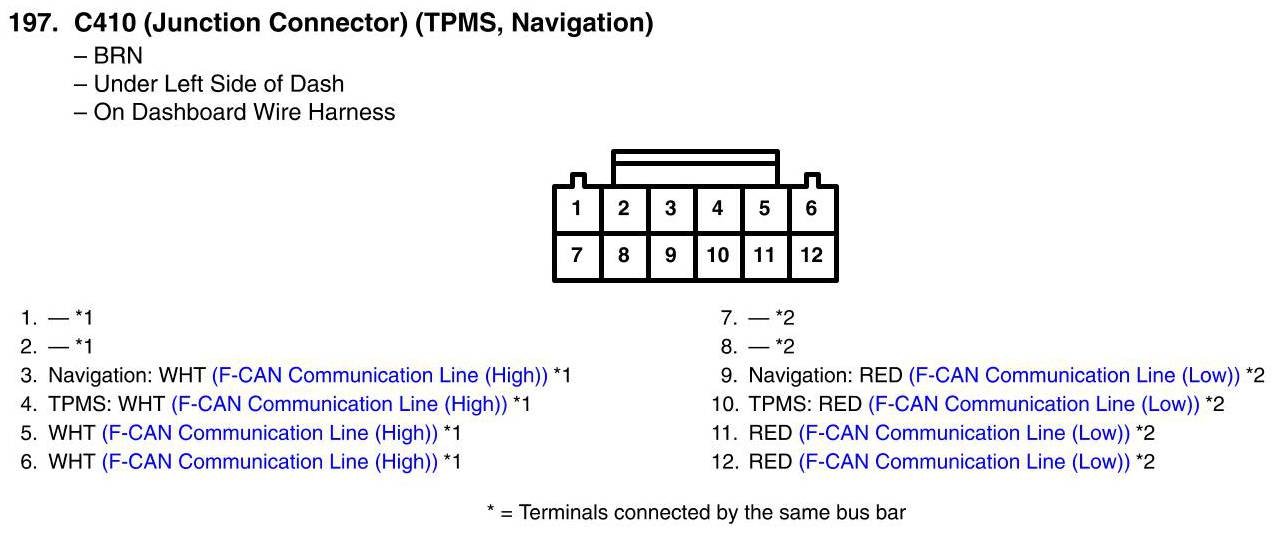

View 197 - C410 (Junction Connector) Connector View (TPMS, Navigation)
View 197 - C410 (Junction Connector) Connector View (TPMS, Navigation)
