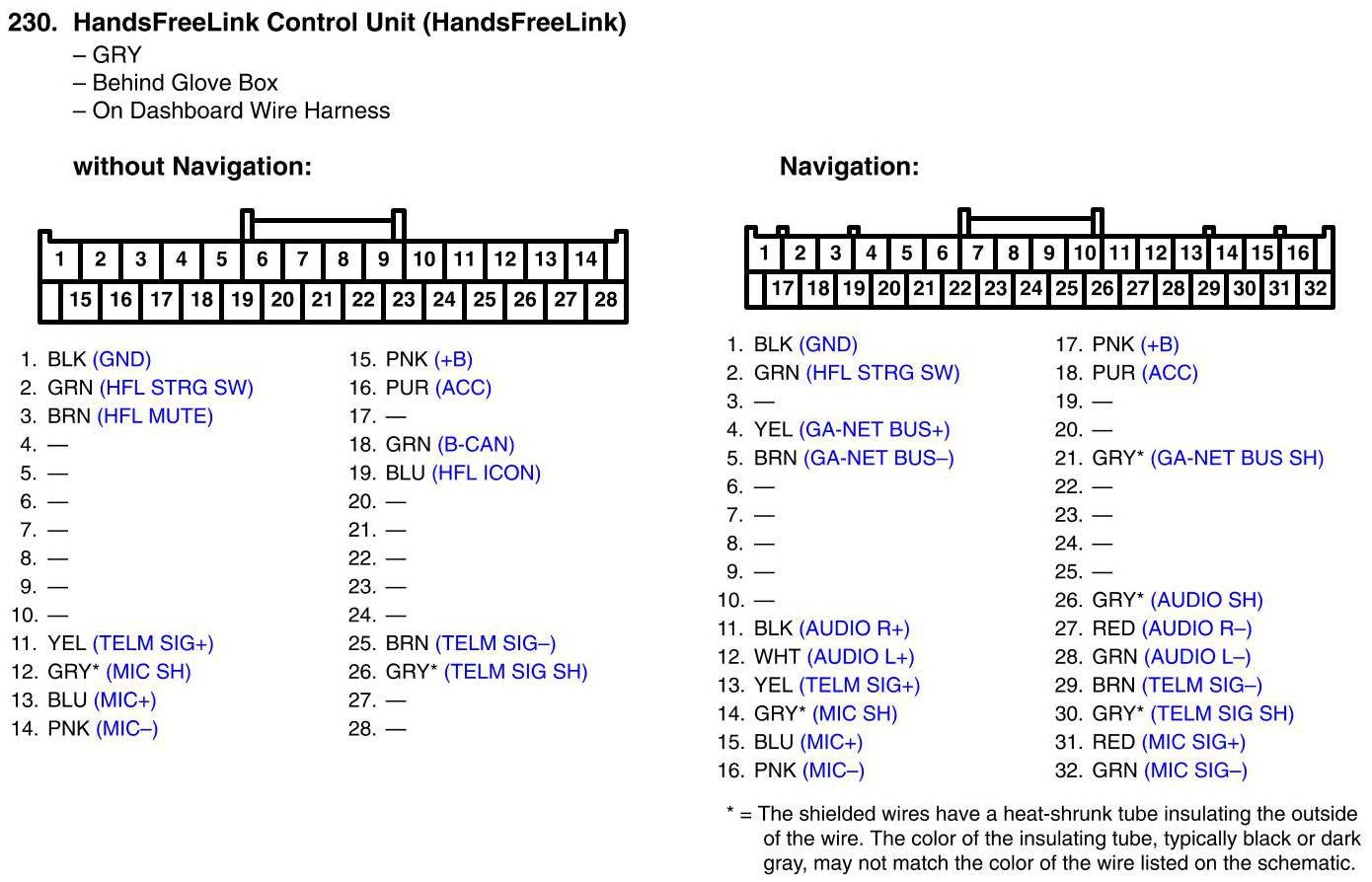

View 230 - HandsFreeLink Control Unit Connector View (HandsFreeLink)
View 230 - HandsFreeLink Control Unit Connector View (HandsFreeLink)
