Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2012
>>
Insight L4-1.3L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>

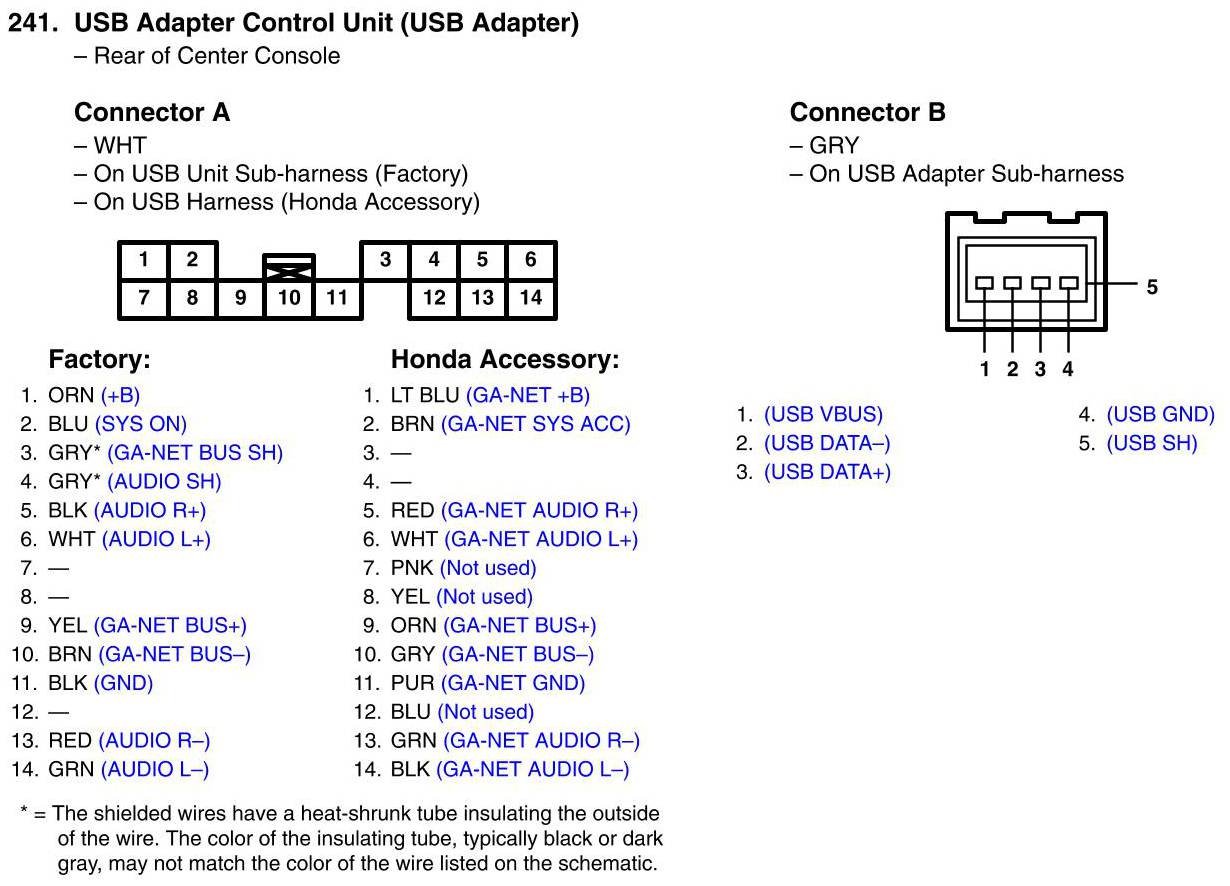

View 241 - USB Adapter Control Unit Connector View (USB Adapter)
View 241 - USB Adapter Control Unit Connector View (USB Adapter)
