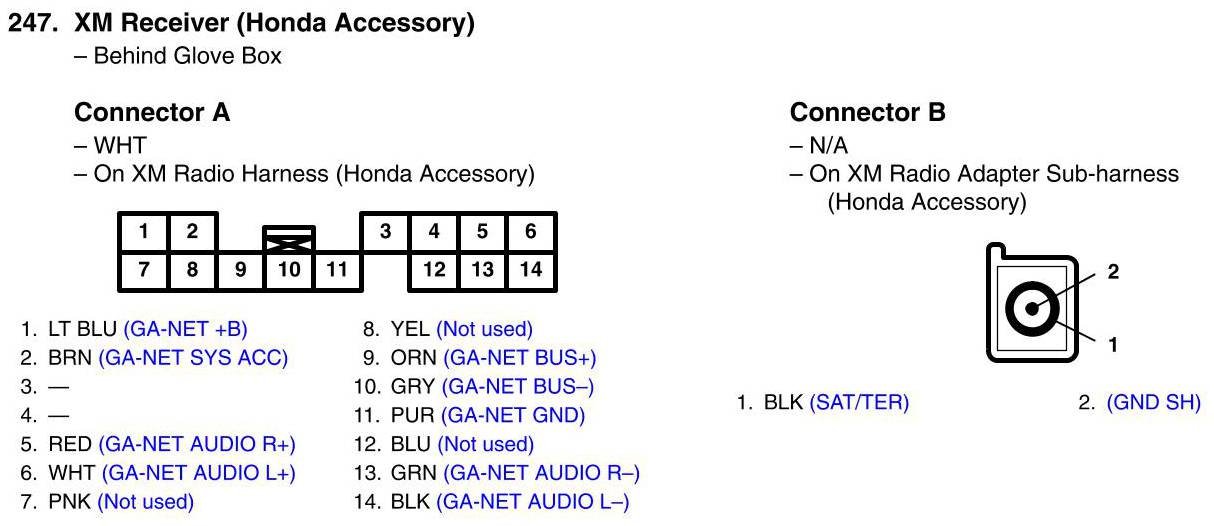

View 247 - XM Receiver Connector View (Honda Accessory)
View 247 - XM Receiver Connector View (Honda Accessory)
