Home >> Honda >> 2012 >> Insight L4-1.3L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 31 - EVAP Canister Purge Valve Connector View

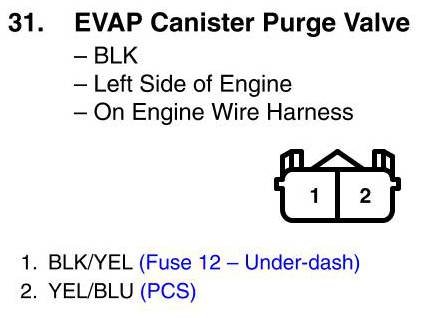

View 31 - EVAP Canister Purge Valve Connector View
