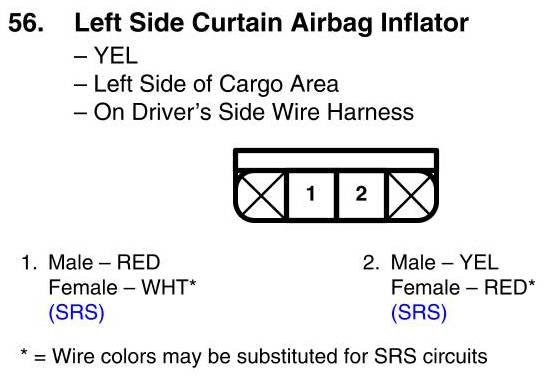

View 56 - Left Side Curtain Airbag Inflator Connector View
View 56 - Left Side Curtain Airbag Inflator Connector View
