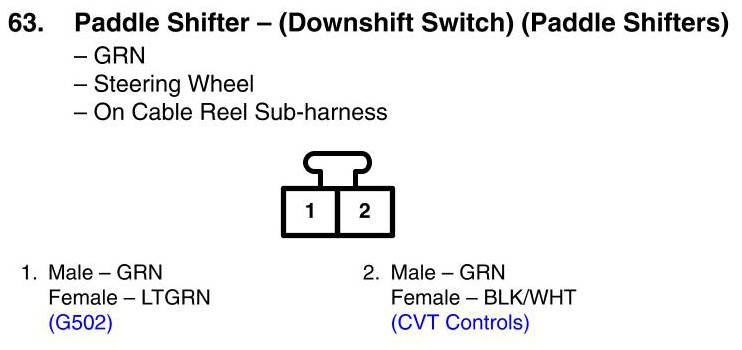

View 63 - Paddle Shifter - (Downshift Switch) Connector View (Paddle Shifters)
View 63 - Paddle Shifter - (Downshift Switch) Connector View (Paddle Shifters)
