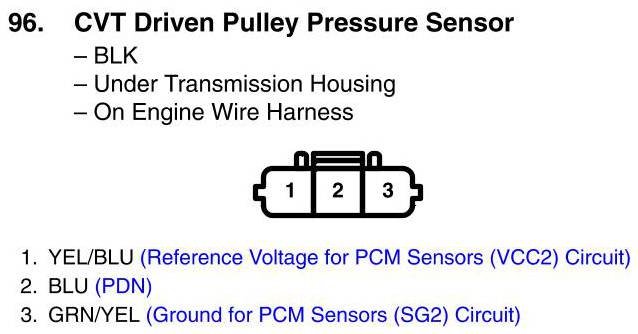

View 96 - CVT Driven Pulley Pressure Sensor Connector View
View 96 - CVT Driven Pulley Pressure Sensor Connector View
