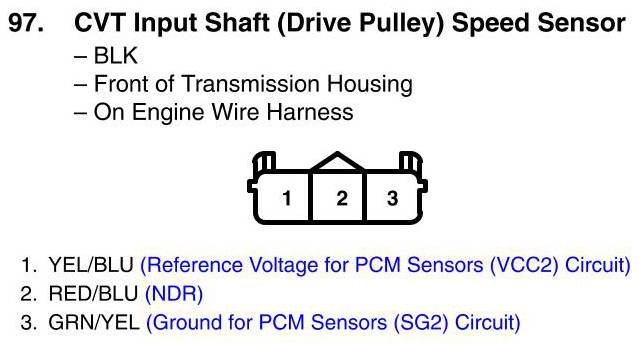

View 97 - CVT Input Shaft (Drive Pulley) Speed Sensor Connector View
View 97 - CVT Input Shaft (Drive Pulley) Speed Sensor Connector View
