Floor Wire Harness
Connector and Harness Locations

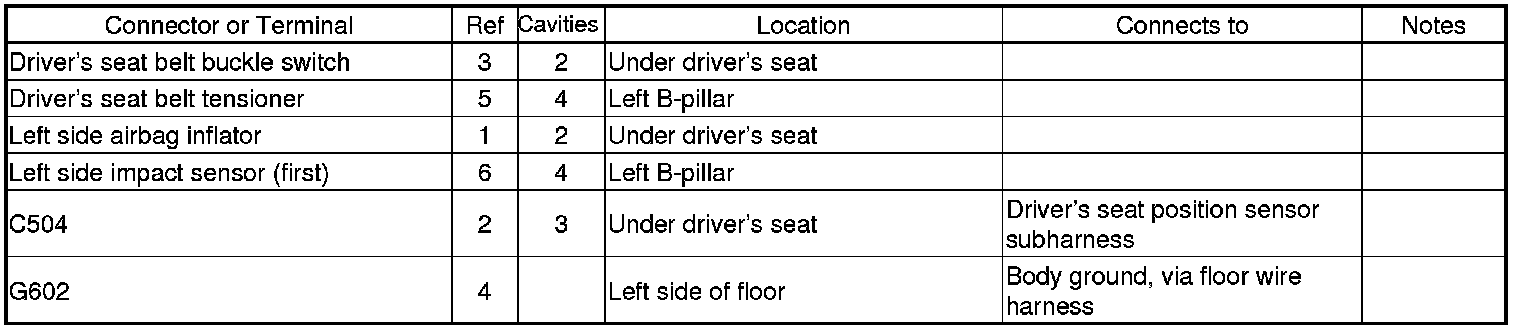

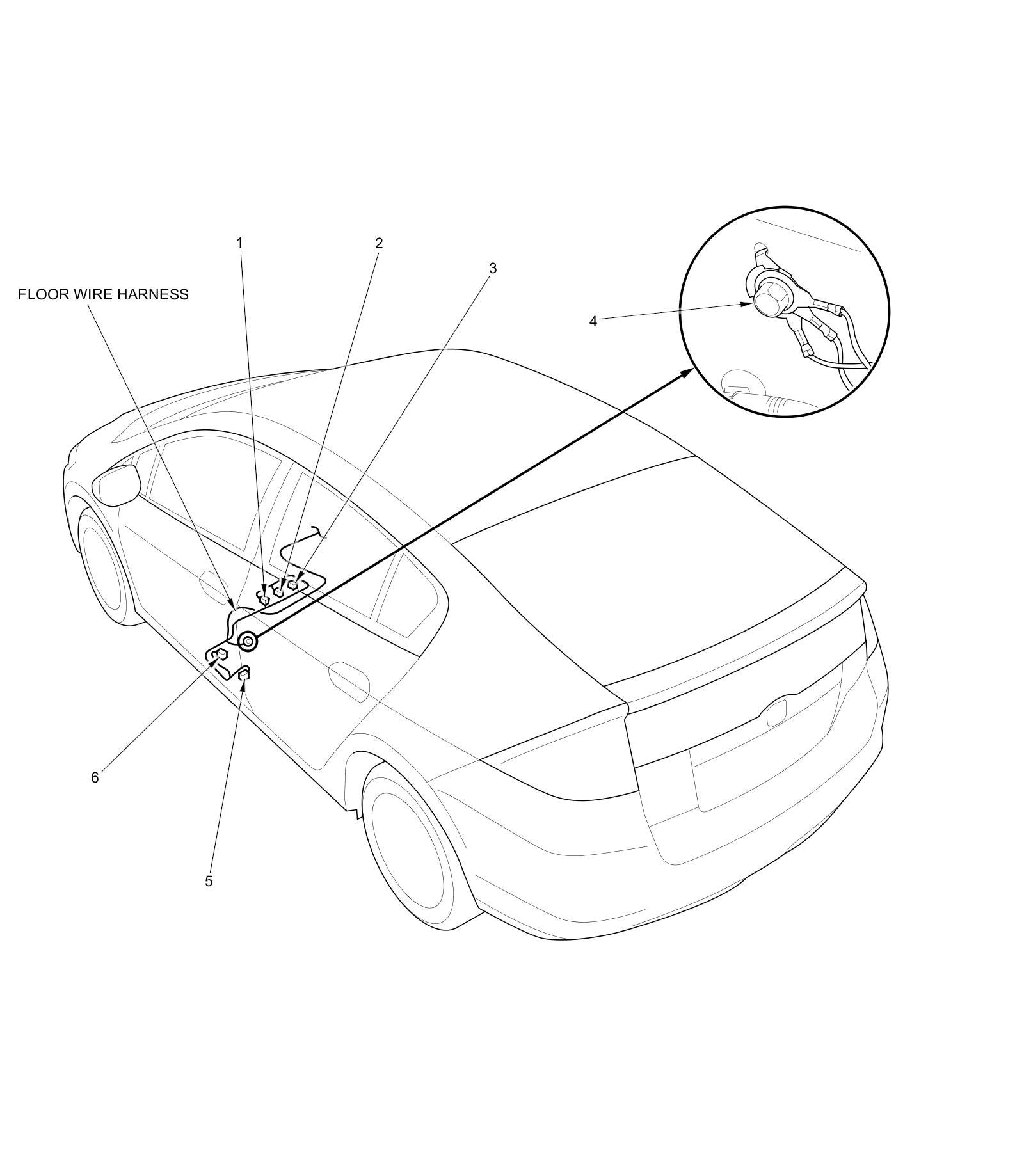

Floor Wire Harness (Left Branch)

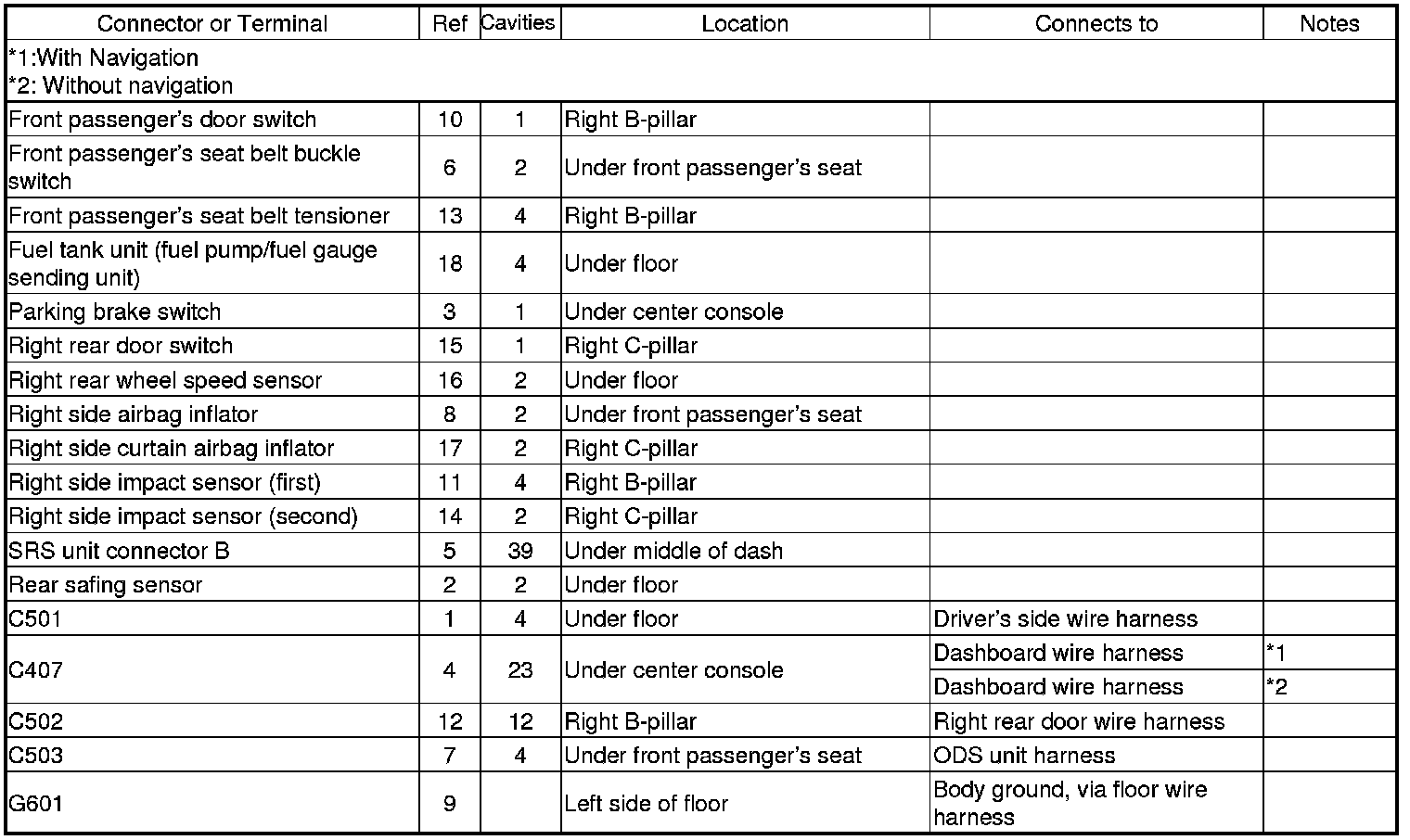

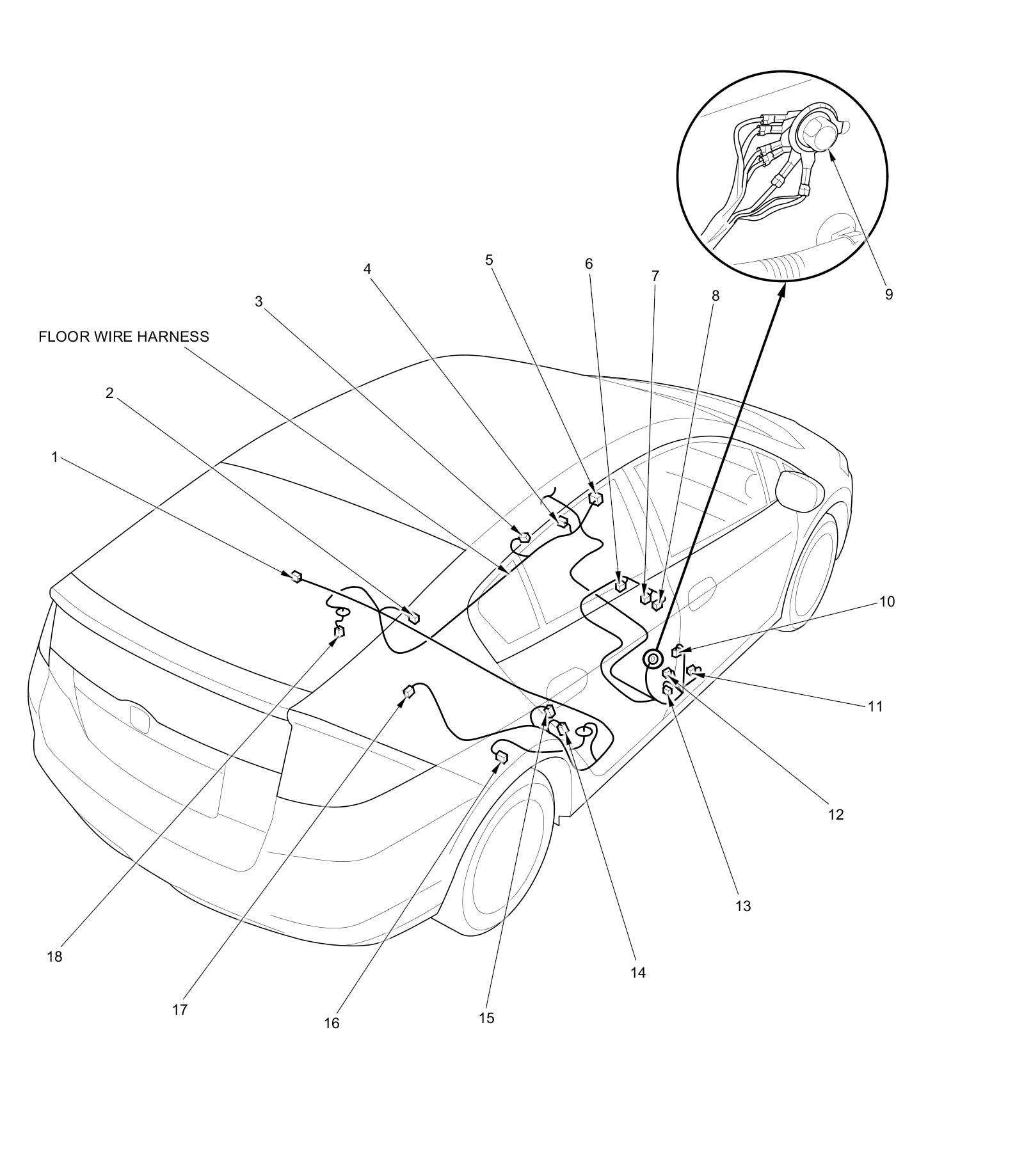

Floor Wire Harness (Right Branch)
